R480 LC-9S

Performance Efficiency Durability Safety Comfort

Heavy-Duty Performance Engineered

The R480 LC-9S Hyundai excavator is built for extreme mining and quarrying, offering fast performance, high stability, long component life, and superior operator comfort and safety.

Performance:

  • Powerful Engine

    The water-cooled 6-cylinder Cummins 6BTAA5.9C engine delivers 148 HP @ 2000 rpm with optimized fuel and oil consumption, low noise, and reliable performance even in hot, humid, and dusty conditions.

    Powerful Engine

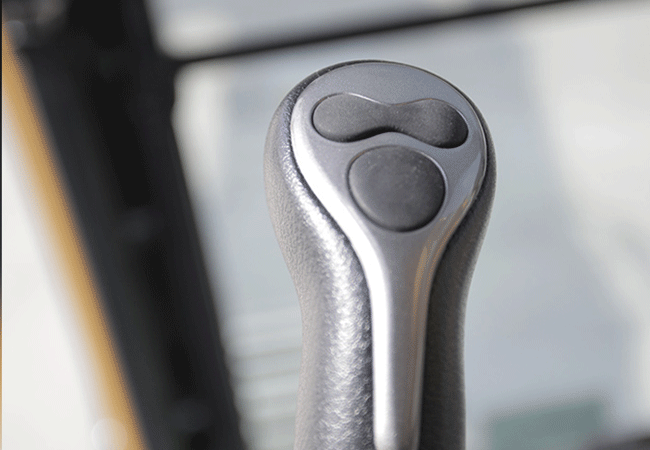

  • Auto Power Boost System

    It automatically boosts digging power during peak loads, delivering extra force when high pressure is detected.

    Powerful Engine

  • 7” Wide LCD Touch Screen

    Auto Arm & Boom Regeneration recirculates hydraulic energy for smoother, faster arm operation while preventing cavitation and boosting overall performance.

    Powerful Engine

  • Hi-MATE

    Hyundai’s remote management system lets users monitor machine data anytime, track location, set work boundaries, and access key diagnostics. It saves time and money through preventive maintenance and reduced downtime.

    Powerful Engine

Efficiency:

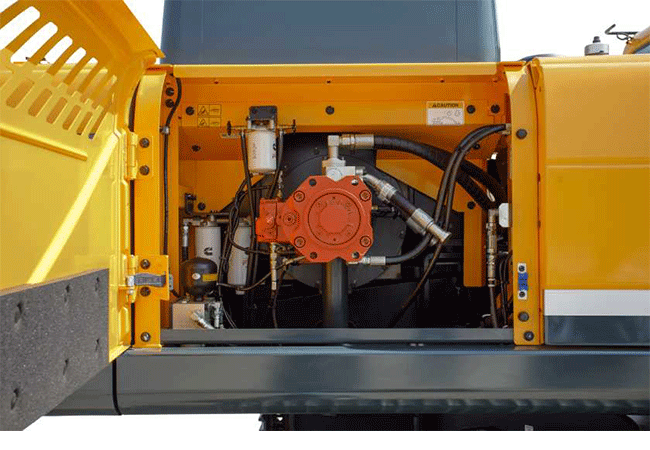

  • Auto Boom & Swing Priority

    The auto-piloted swing priority boosts hydraulic flow to the swing circuit, enabling faster swing cycles for higher productivity and profitability.s.

    Powerful Engine

  • CAPO System

    The advanced CAPO system optimizes engine and pump power, offering multiple modes to deliver high performance with reduced fuel consumption.

    Powerful Engine

  • One-Touch & Auto-Idle

    The one-touch deceleration switch instantly lowers engine RPM to save fuel. The Auto Idle function further reduces RPM when the machine is inactive for 4 seconds, cutting fuel use and operating costs.

    Powerful Engine

  • Maintenance Management

    This smart feature tracks maintenance intervals and keeps the operator constantly updated.

    Powerful Engine

Durability :

  • Heavy Duty Boom & Arm

    Built with high-tensile steel, the reinforced boom and arm resist wear, extend component life, and prevent damage from lifted boulders.

    Powerful Engine

  • Reinforced Frames

    The frames withstand heavy shocks and workloads, ensuring longer machine life.

    Powerful Engine

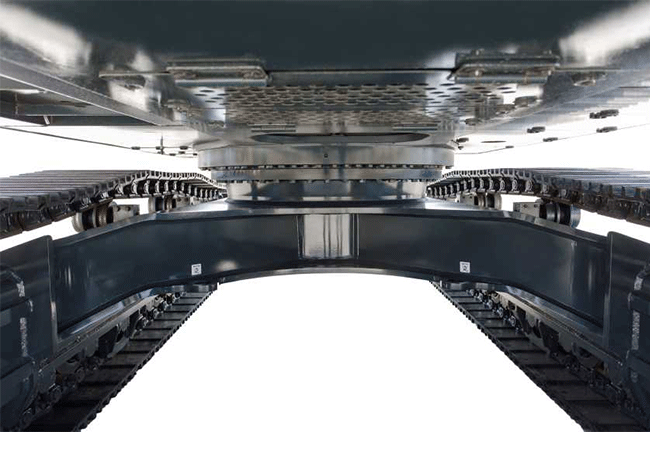

  • Heavy Duty Undercarriage

    Side member reinforcement protects the idler in tough terrain, while the heavy-duty track shoe ensures greater stability and durability.

    Powerful Engine

  • Cabin Structure

    The 9S series cabin uses stronger, slimmer tubing for enhanced safety and visibility, validated through FEM analysis and long-term durability testing.

    Powerful Engine

Safety :

  • Engine Overheat Prevention

    Automatically reduces engine speed during overheating to protect the machine from premature failure.

    Powerful Engine

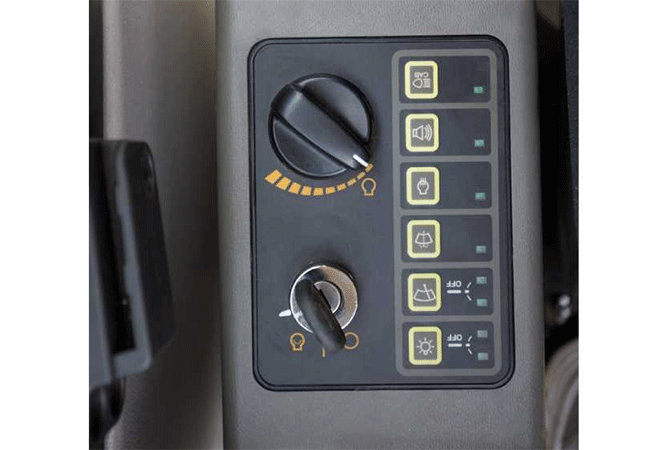

  • Anti-Restart System

    This feature prevents the starter from engaging while the engine is running, protecting the engine from accidental damage.

    Powerful Engine

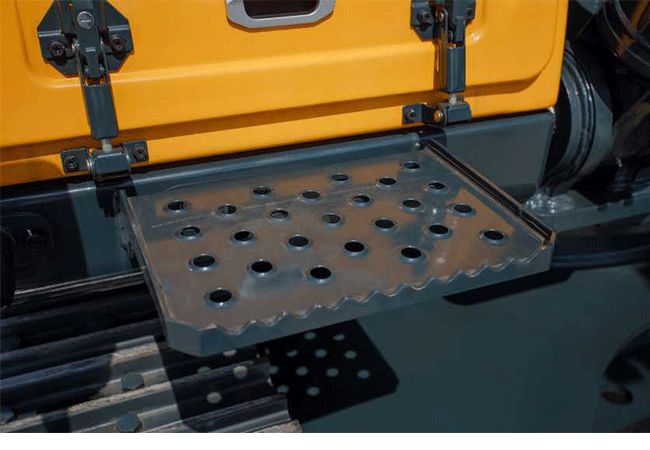

  • Anti-Slip Pads

    Anti-slip pads ensure strong floor grip, while handrails offer added support and safety when entering or exiting the cabin.

    Powerful Engine

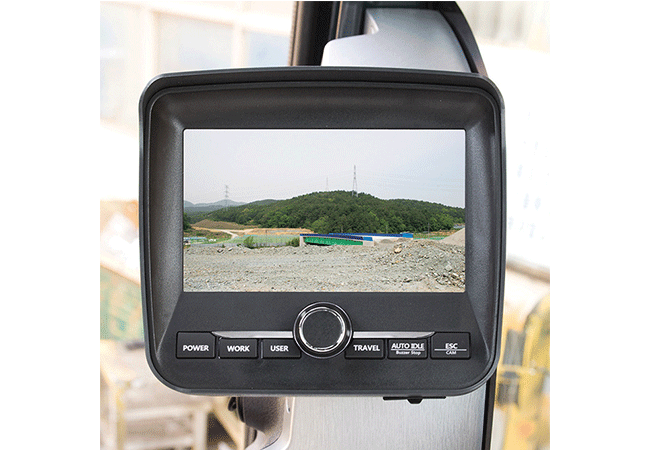

  • Rear-view Camera

    A rear-view camera is integrated into the monitor, which allows for safer and easier operation while driving in reverse.

    Powerful Engine

Comfort :

  • Air Conditioned Cabin

    The spacious Air Conditioned cabin creates a very comfortable working environment for the operator.

    Powerful Engine

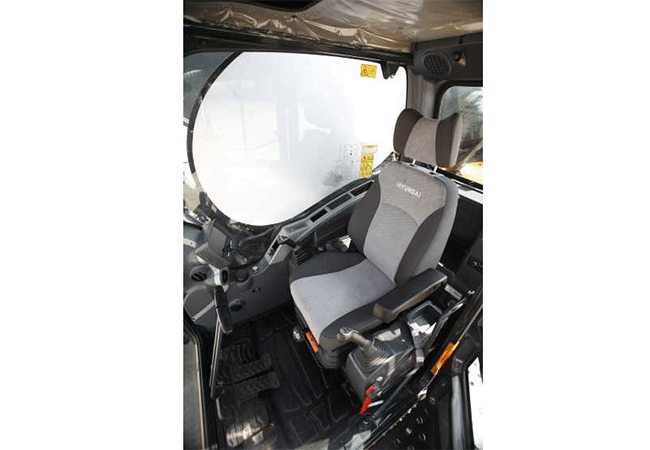

  • Premium Seat

    Hyundai excavators offer fully adjustable deluxe seats with mechanical suspension, heating, and adjustable armrests for maximum operator comfort.

    Powerful Engine

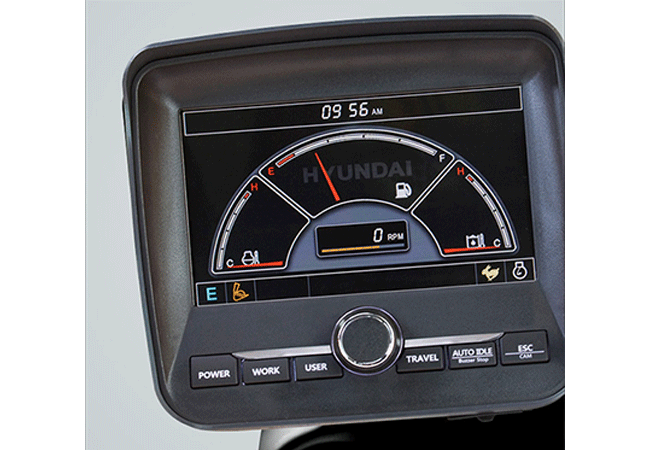

  • Digital Cluster

    The digital cluster shows vital machine data like oil and coolant temperature. Operators can optimize performance using two power modes, three work modes, and two user modes.

    Powerful Engine

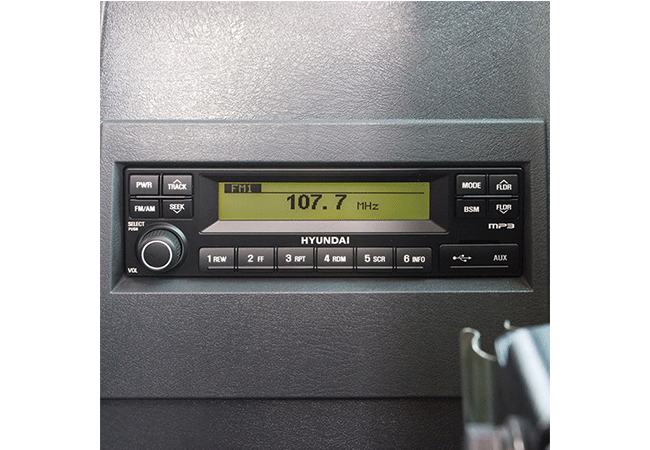

  • Advanced Audio System

    The audio system features AM/FM radio, USB MP3, Bluetooth hands-free calling, and a built-in mic, with controls conveniently placed on the operator’s right side.

    Powerful Engine
Hyundai_mini_R480 Brochures
Hyundai_mini_R480 Download Brochure
Engine Model Cummins QSM11-C Gross Power (HP) 353 HP @ 1900 rpm
Operating Weight 49500 Kgs Bucket Range 2.43 – 3.0 cu.m
Swing Speed 9 rpm Travel Speed (High/Low) 5.0 / 3.2 km/hr
Max. Digging Reach on Ground 11900 mm Max. Digging Depth 7810 mm
Tail Swing Radius 3780 mm Bucket Digging Force 28360 kgf
Arm Crowd Force 22150 kgf
