High Bucket Digging Forces/h3>
The Hydraulics and attachments are designed to offer high digging forces.
HYUNDAI
Hyundai 215 SMART excavator is built for high performance and productivity. The machine is equipped with long undercarriage for higher operating weight and better stability while performing application on variable strata. It's Advanced Fuel Saving technology and optimized CAPO System make the machine preferred choice for the Customers.

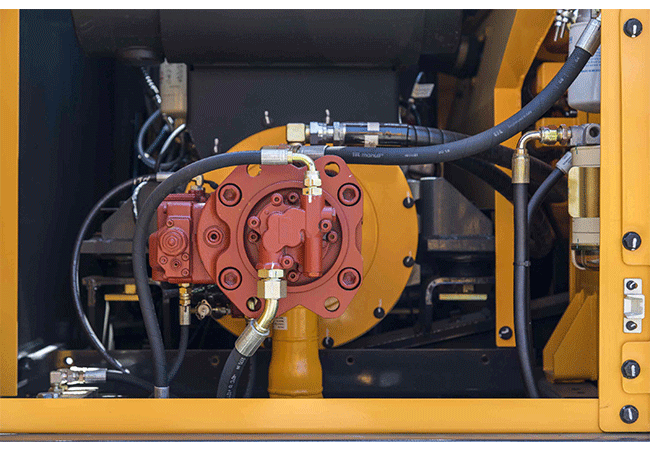

Electro Hydraulic Flow Control
To ensure best productivity, the Variable Displacement Axial Piston type pump with electro hydraulic control function provides a wide range of flow at various workloads. The open center design of the main control valve provides fast synchronization between joystick and hydraulic components. Thus increasing speed and smoothness of operations.
Arm Regeneration
Arm regeneration helps to recirculate hydraulic energy from return line to pump supply line for smooth and fast arm operation. It prevents cavitation and enhances performance of machine.

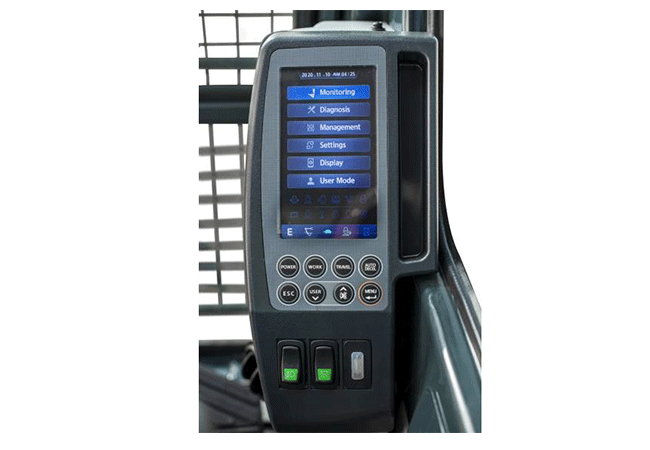

Digital Cluster with Color Display and Work Mode Selection
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, two work modes and two User Modes.

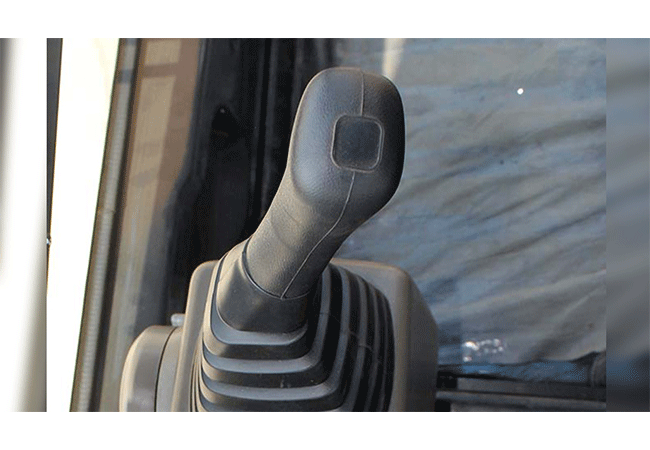

One-Touch Deceleration & Auto-Idle
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.
Swing Priority
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.

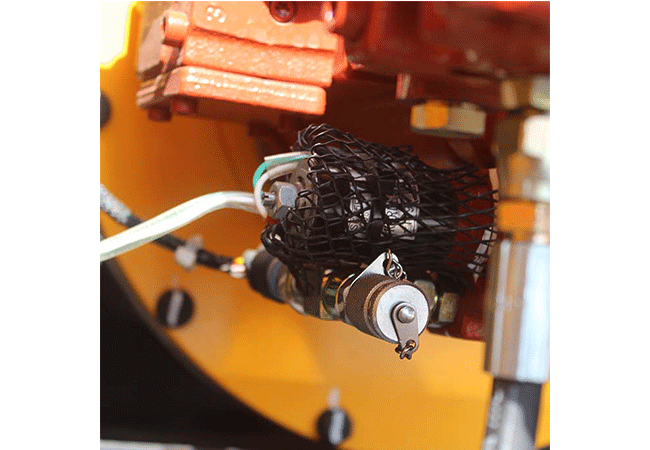

Fuel Saving Kit
The sensors in this kit monitor undue loads and send signals to the Main Control Valve to cut down unnecessary fuel consumption. It helps to increase fuel efficiency.

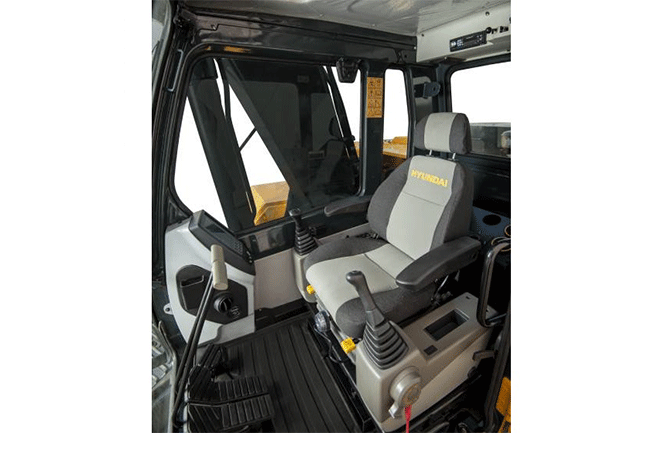

Comfort
The spacious Air Conditioned cabin creates a very comfortable working environment for the operator. The seat comes with 7 Adjustments including seat height movement. Soft joystick control ensures increased productivity and higher operator efficiency.
Strong Boom & Arm
Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to maximize impact strength

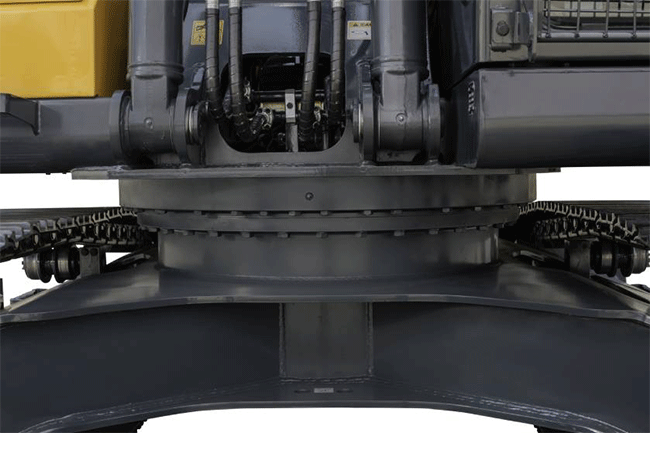

Forged Ring Body
New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.
Heavy Duty Undercarriage
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

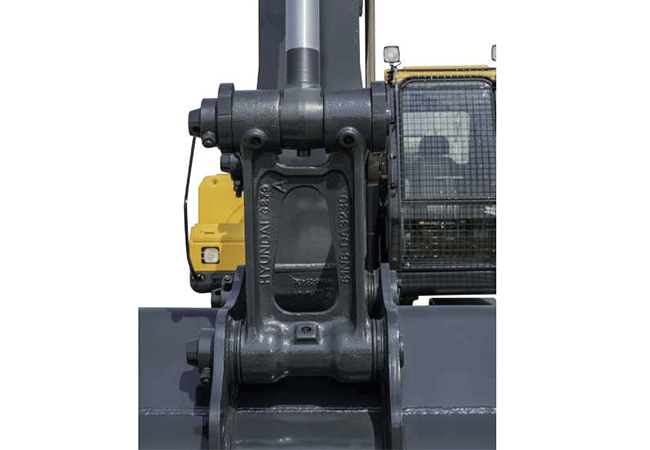

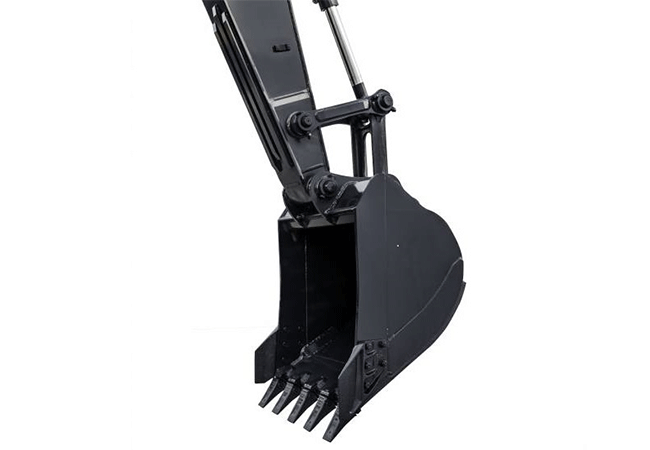

Reinforced Bucket Linkage
Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.

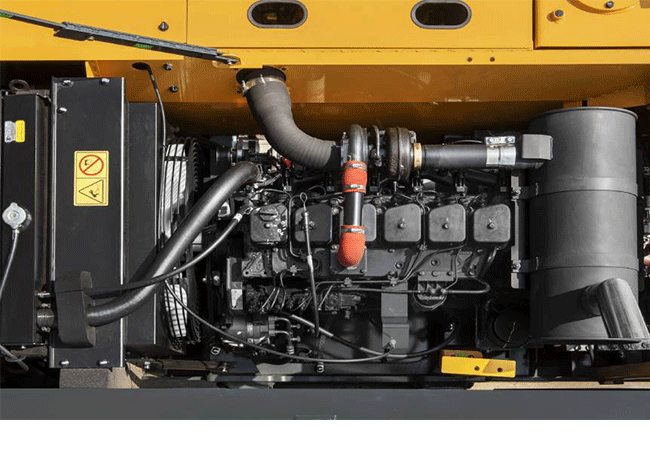

Automatic Engine Overheat Prevention
This feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure.

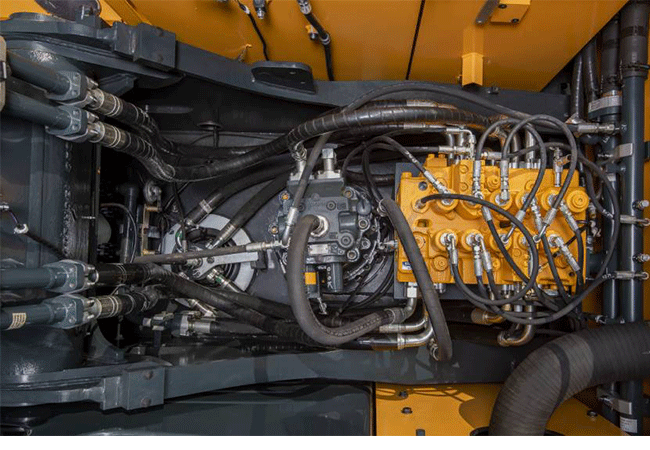

Counterbalance & Holding Valve
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking. The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.
Anti-Restart System
This feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine

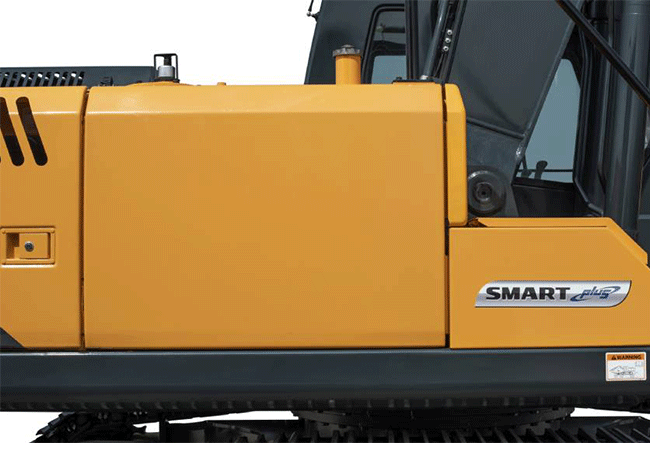

Added Tank Cowl
The tank cover keeps the fuel tank safe from hitting against any external objects during excavation operations
- Engine model Cummins 6BT5.9C
- Gross power (HP) 140 HP @ 2000 rpm
- Operating weight 21700 Kgs
- Bucket range 0.92-1.00 cu.m
- Swing speed 11 rpm
- Travel speed, high/ low 5.3/ 3.4 km/hr
- Max. digging reach on ground 9500 mm
- Max. digging depth 6220 mm
- Tail swing radius 2830 mm
- Bucket digging force 15500 kgf.
- Arm crowd force 12000 kgf.
