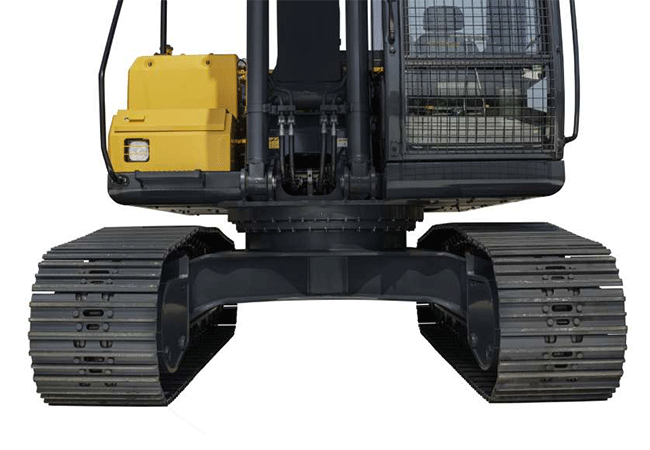

Stability
A long crawler and high operating weight facilitates better stability to the machine while working on heavy loads and in harsh terrains. It helps to increase operator convenience and comfort.
HYUNDAI

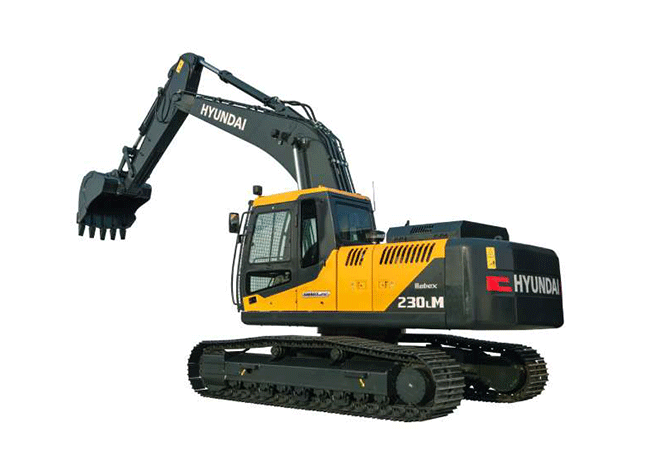

The 230LM Smart Hyundai excavator is specifically built for Quarry and mining operations of marble and granite. This high-performance machine passes all the benchmarks required to perform in such harsh conditions: high power, high structure strength, great stability and high durability.

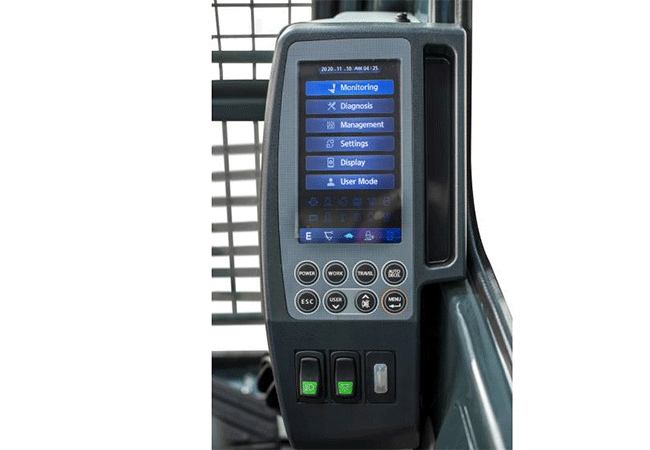

Digital Cluster with Color Display and Work Mode Selection
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, three work modes and two User Modes

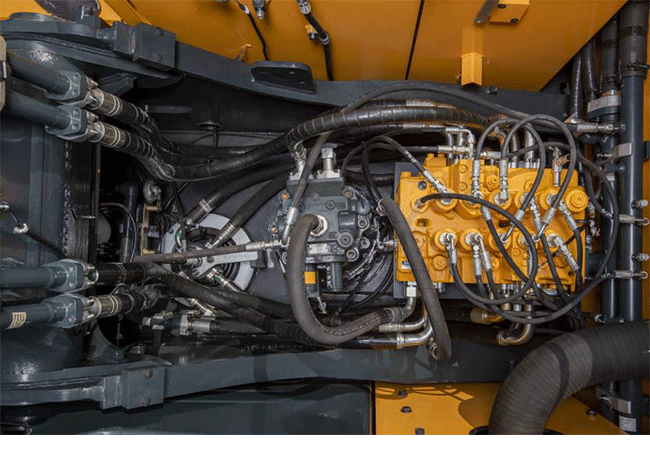

Arm Regeneration
Arm regeneration helps to recirculate hydraulic energy from return line to pump supply line for smooth and fast arm operation. It prevents cavitation and enhances performance of machine.

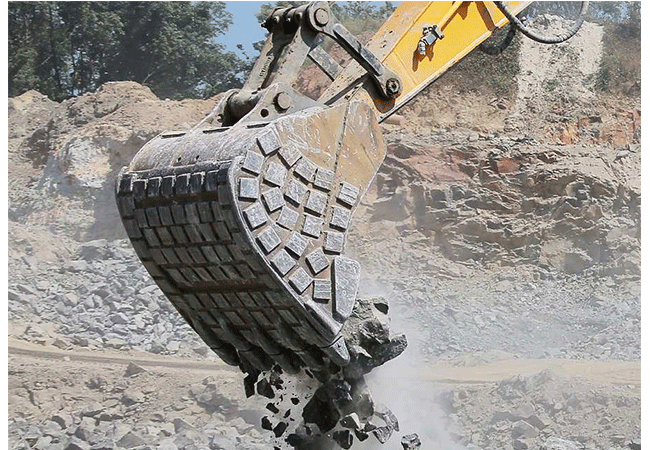

High Digging Force
The Hydraulics and attachments are designed to offer high digging forces.

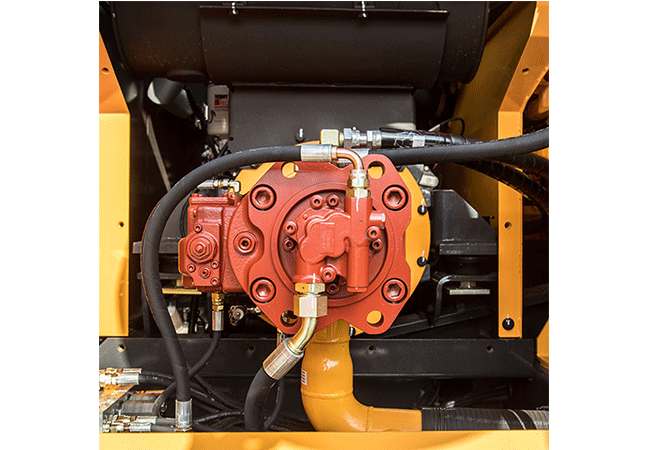

Negative Flow Control for Fast Response
When a component is not in operational, a control lever stroke maintains high standby pressure of hydraulic oil in the hydraulic hoses rather than sending it back to the main control valve. It not only results in faster response time of the hydraulic component, but also fuel savings.

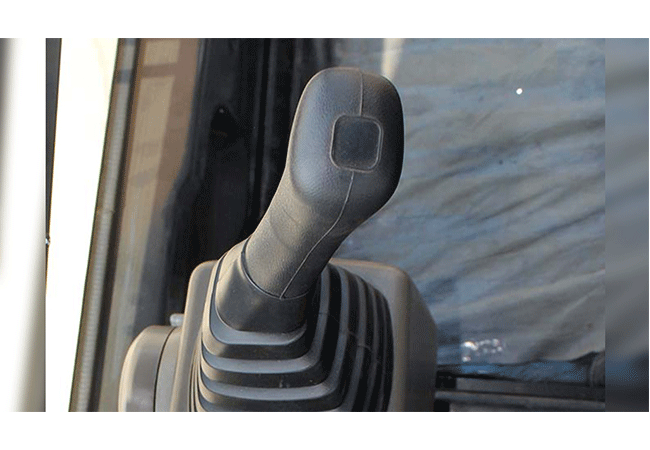

One-Touch Deceleration & Auto-Idle
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state e=when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.

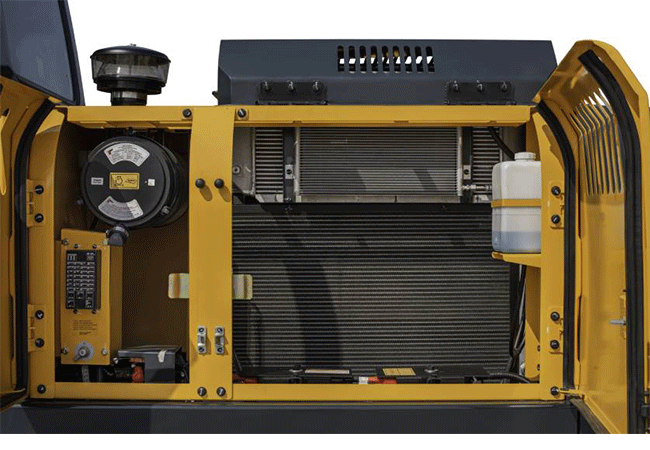

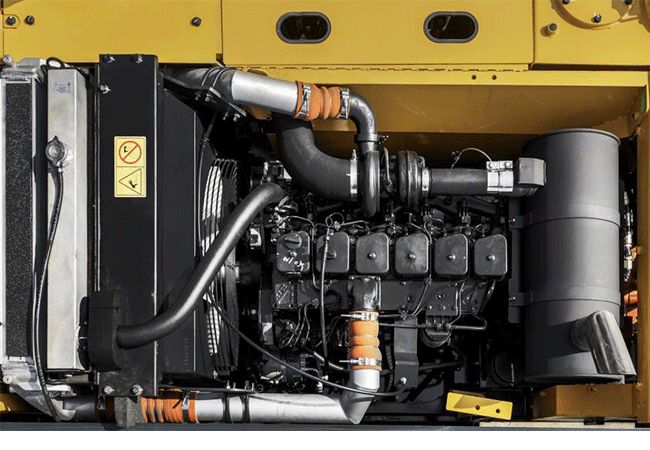

Charge Air Cooler System
The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.
Swing Priority
The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.

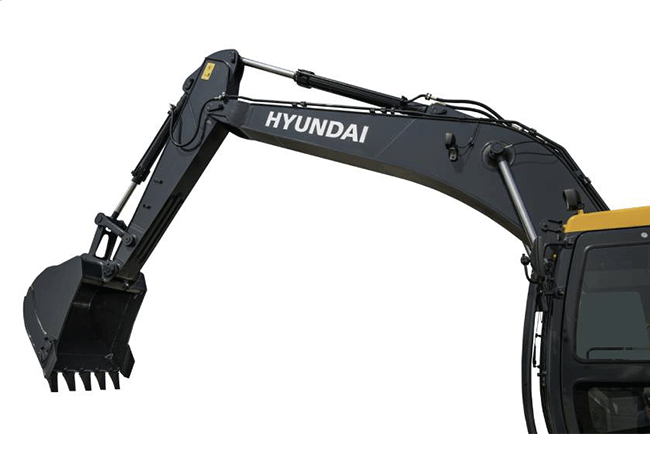

Heavy Duty Boom & Arm
Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to withstand wear and tear, which extends component life.

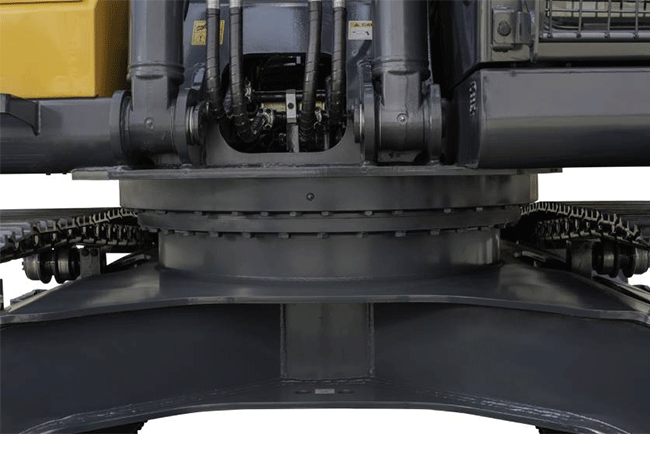

Forged Ring Body
New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

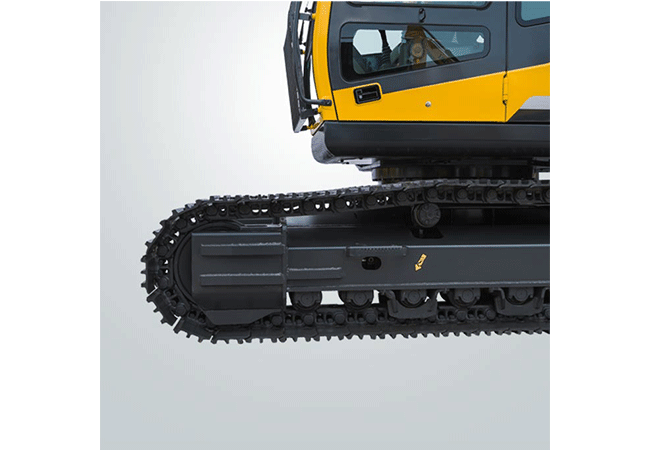

Heavy Duty Undercarriage
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains

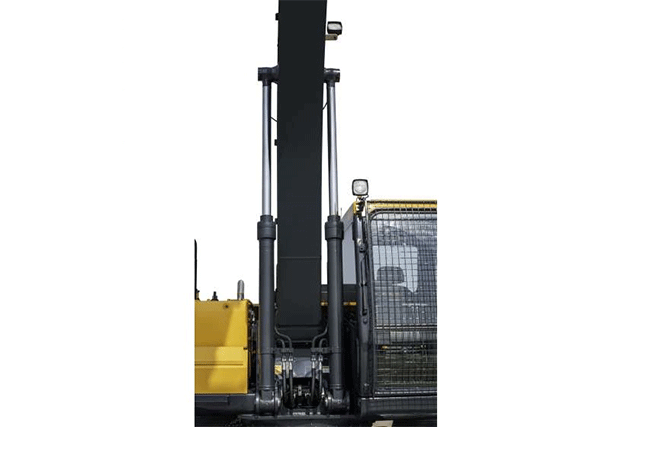

Bigger Cylinder Rod Diameter
A bigger rod provides more strength for digging as well as increases component life.
Automatic Engine Overheat Prevention
This feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure of the machine.

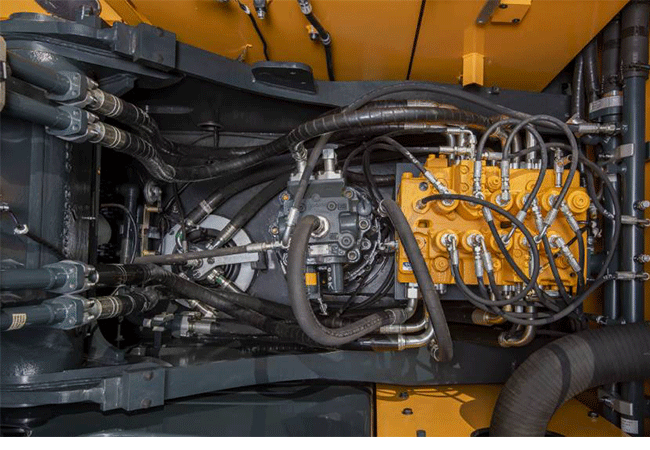

Counterbalance Valve
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking
Holding Valve
The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.

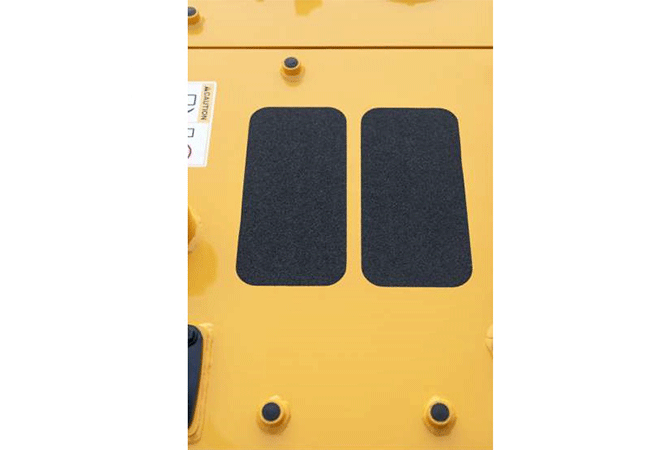

Anti-Slip Pads
Anti-slip pads provides a great floor grip to the operator and prevent skidding while working on the machine.
- Engine model Cummins 6BTAA5.9C
- Gross power (HP) 148 HP @ 2000 rpm
- Operating weight 23300 Kgs
- Bucket range 0.87-1.7 cu.m
- Swing speed 11 rpm
- Travel speed, high/ low 5.3/ 3.4 km/hr
- Max. digging reach on ground 9330 mm
- Max. digging depth 6220 mm
- Tail swing radius 2830 mm
- Bucket digging force 15500 kgf.
- Arm crowd force 12000 kgf.
