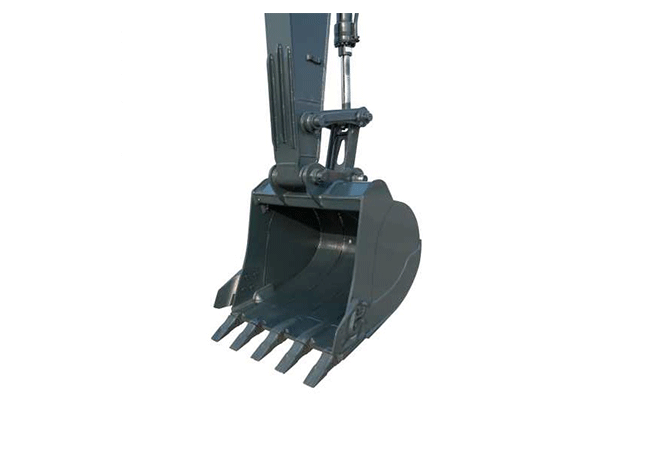

High Bucket Digging Forces
The Hydraulics and attachments are designed to offer high digging forces.
HYUNDAI
The 130 Smart Hyundai excavator takes the ease of operations and profitability to greater heights. Best suited for construction works and land development, this Hyundai machine comes power-packed with features that ensure low fuel consumption, low operator fatigue, fast operations and much more.

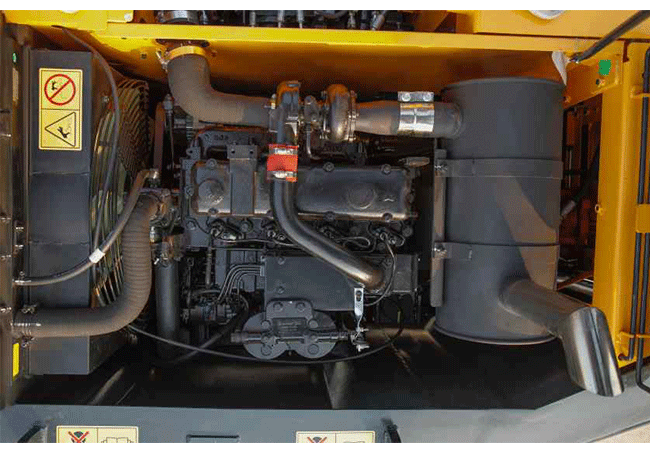

Powerful Engine
The heavy duty Kirloskar 4R1040T engine has a gross power of 94 HP @1950 rpm that offers a powerful performance and low fuel consumption along with low noise levels.
Exclusive Breaker Mode
Breaker Mode is provided to optimize the energy requirement of Rock breaker and ensures maximum productivity and low fuel consumption

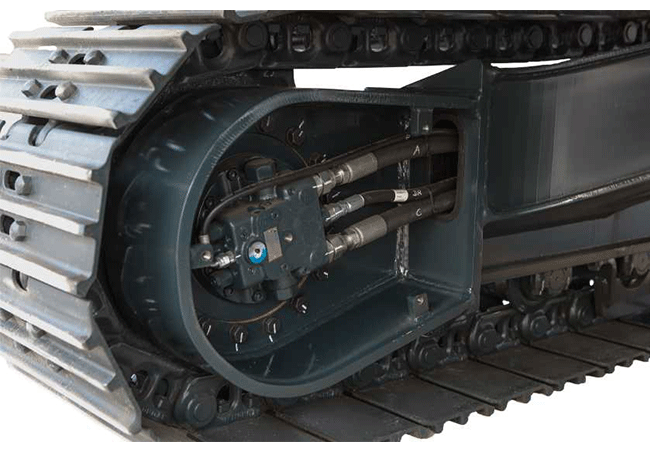

Two Travel Speed Control System
The machine can be operated in two travel speed modes. They help to maneuver the machine easily at various gradients and ground condition

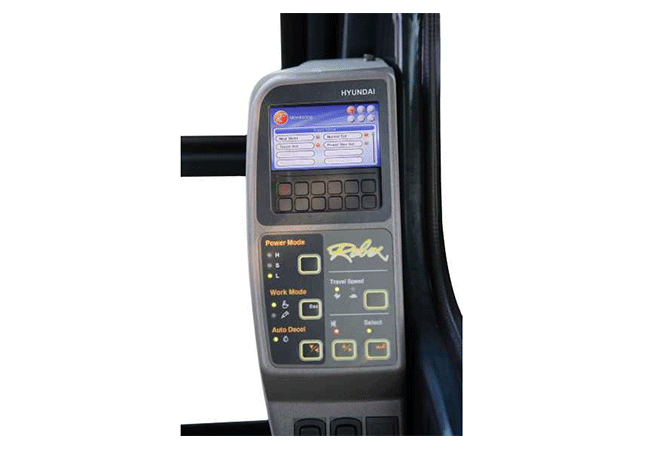

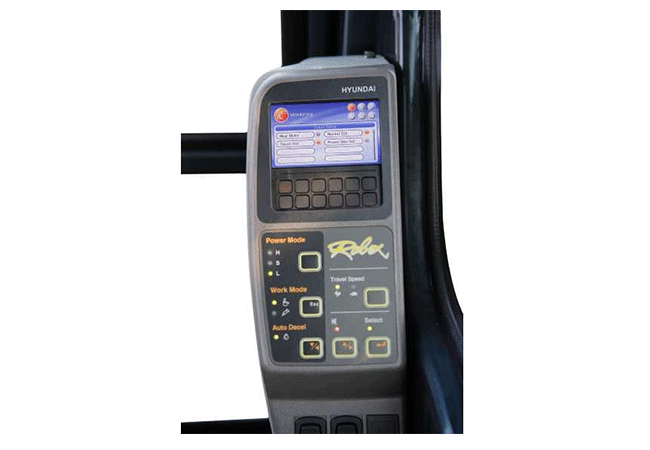

CAPO System (Computer Aided Power Optimization)
The advanced CAPO (Computer Aided Power Optimization) system tunes engine and pump power to optimum level. Multiple modes selections are available for various workloads, maintaining high performance while reducing the fuel consumption.

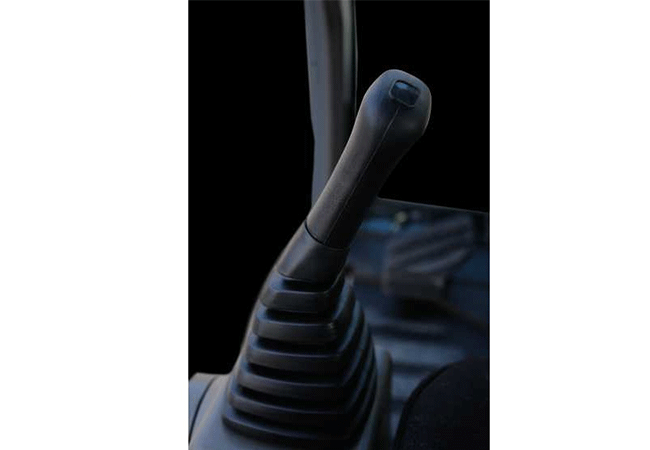

One-Touch Deceleration
This switch on the left-hand joystick lowers engine RPM to idle and restores to preselected rpm when the machine is stationary, thus saving fuel.

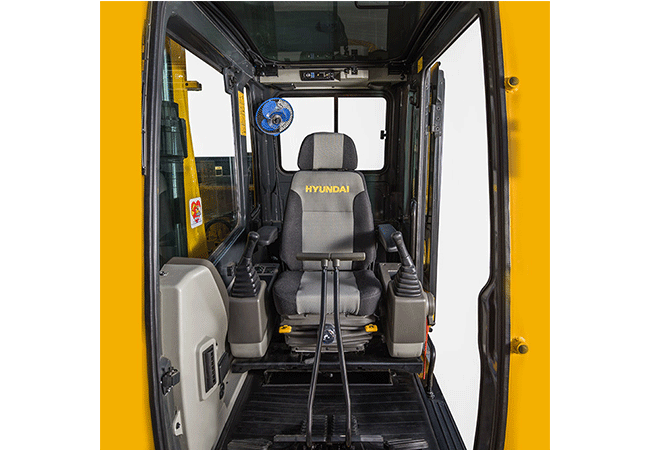

Comfort
The spacious Air Conditioned cabin creates a very comfortable working environment for the operator. The seat comes with 7 Adjustments including seat height movement. Soft joystick control ensures increased productivity and higher operator efficiency.
Self-diagnostics System
The Main Control Unit automatically displays machine malfunctions on the LCD monitor. This makes it very easy to check machine health and troubleshoot problems.

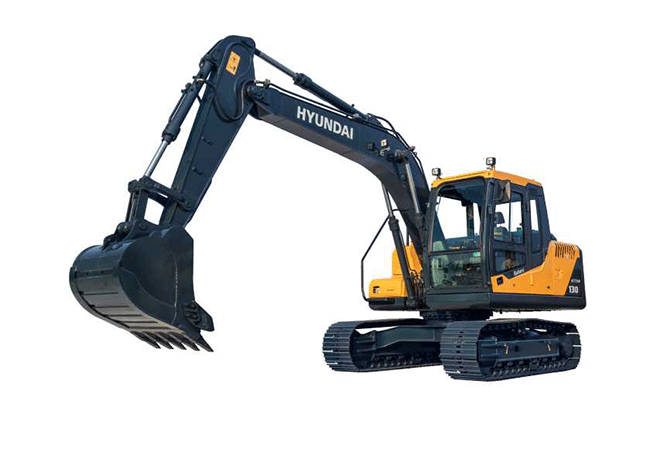

Strong Boom & Arm
Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to maximize impact strength

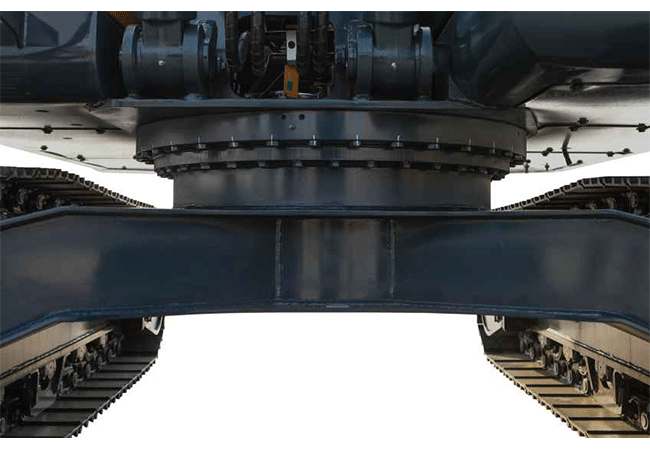

Reinforced Upper & Lower Frame
The frames are built to withstand tougher conditions by enduring external shocks and heavy workloads, thus extending machine life.

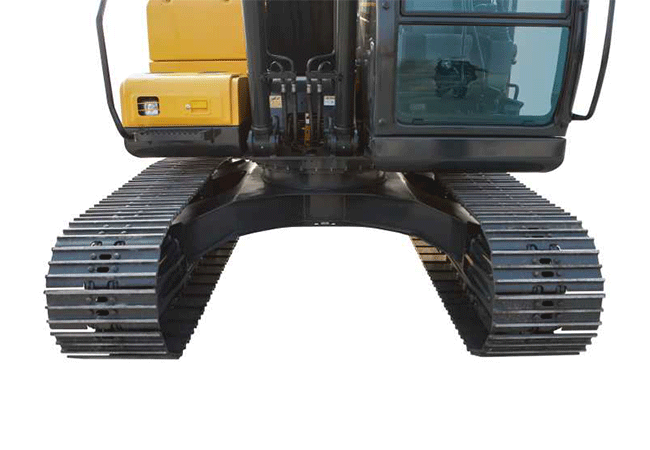

Heavy Duty Undercarriage
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

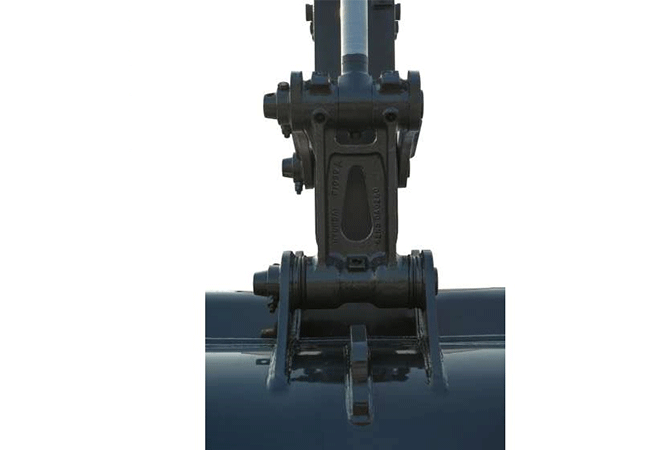

Reinforced Buckets & Linkages
Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.

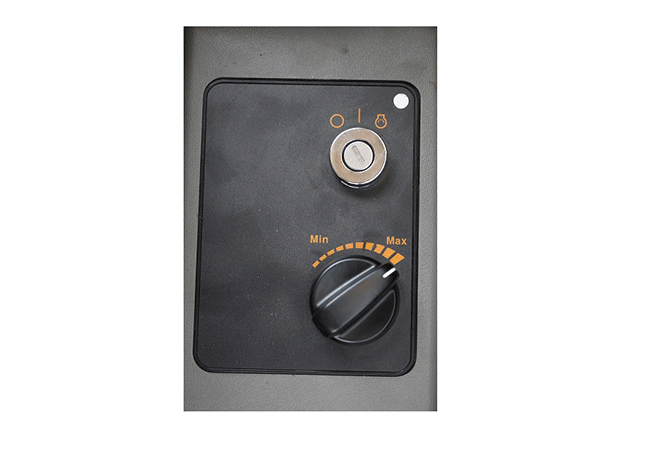

Anti-Restart System
This feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine

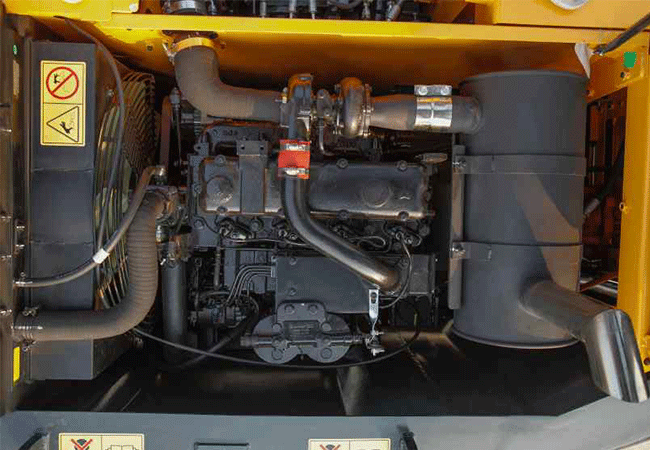

Automatic Engine Overheat Prevention
This feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure of the machine.

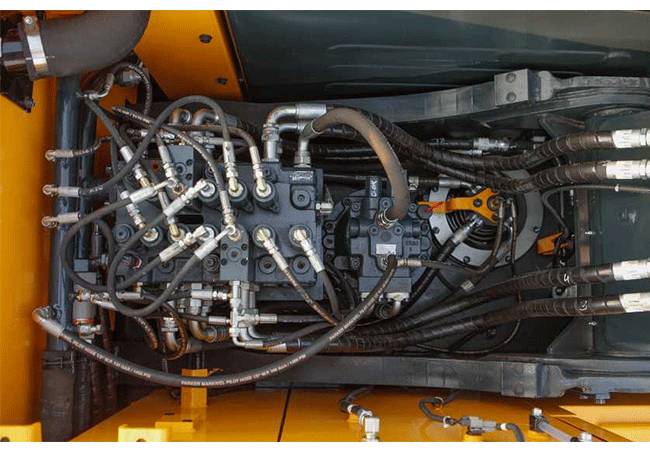

Counterbalance & Holding Valve
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking. The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.

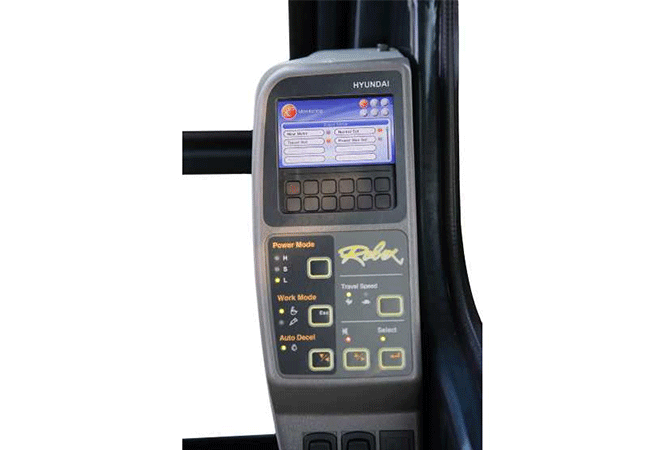

Warning Lamps
Warning lamps are provided in the display cluster to alert the operator about hydraulic oil temperature, engine coolant temperature, etc. So that safe levels of the respective components can be maintained easily.
- Engine model Kirloskar 4R1040T
- Gross power (HP) 94 HP @ 1950 rpm
- Operating weight 12100 Kgs
- Bucket range 0.45- 0.65 cu.m
- Swing speed 12 rpm
- Travel speed, high/ low 5.5/ 3.4km/hr
- Max. digging reach on ground 7320 mm
- Max. digging depth 4770 mm
- Tail swing radius 2130 mm
- Bucket digging force 8000 kgf.
- Arm crowd force 6140 kgf.
