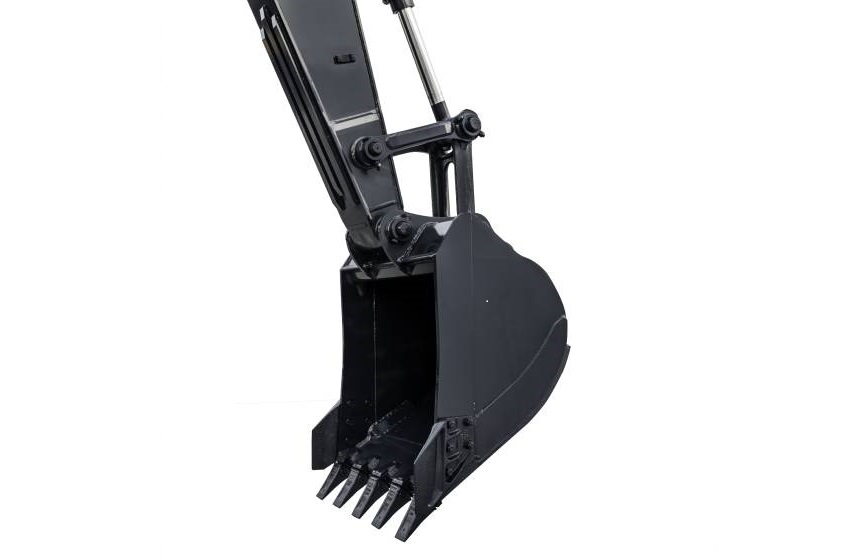

High Bucket Digging Forces
The Hydraulics and attachments are designed to offer high digging forces.
HYUNDAI

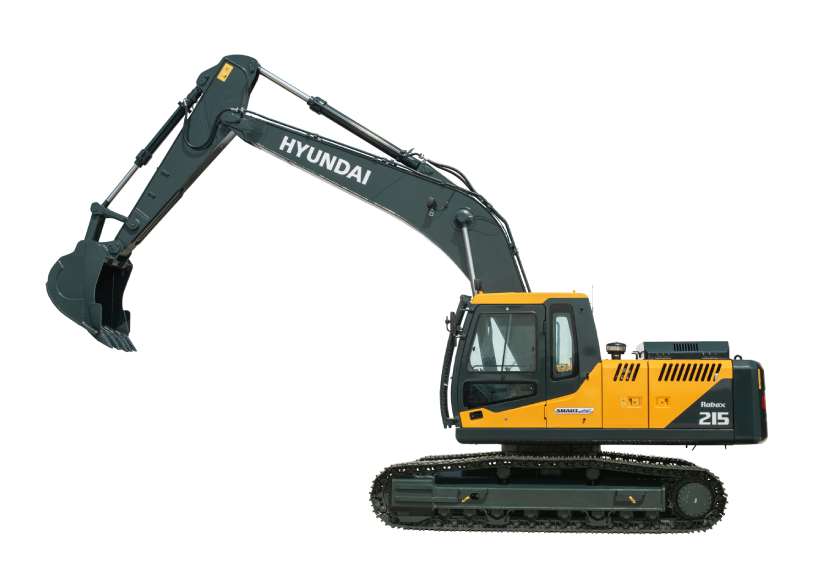

The 215L Smart Hyundai excavator is the machine for operations where high performance is the ultimate objective. With a high performing engine, high stability on uneven surfaces, high operating weight, bigger buckets and improved operator comfort and convenience, this machine promises maximum productivity.

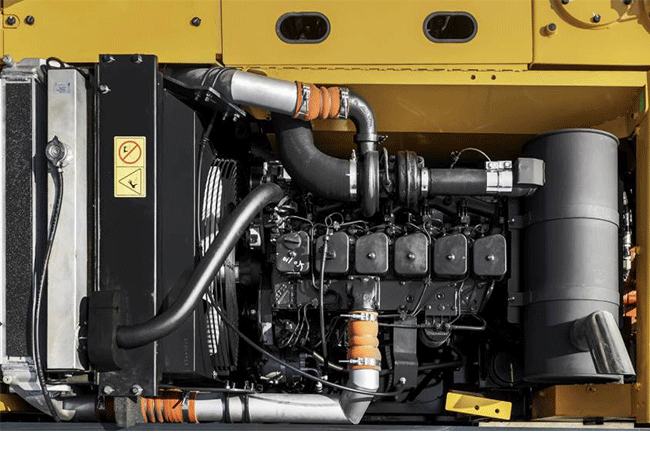

Powerful Engine
The water-cooled, 4-cycle diesel, 6-cylinder Cummins 6BTAA5.9C engine has a gross power of 148 HP @2000 rpm that not only offers optimized fuel and lube oil consumption but also low noise levels. It delivers outstanding performance even in high-heat, humid and dusty conditions.
Arm Regeneration
Arm regeneration helps to recirculate hydraulic energy from return line to pump supply line for smooth and fast arm operation. It prevents cavitation and enhances performance of machine.

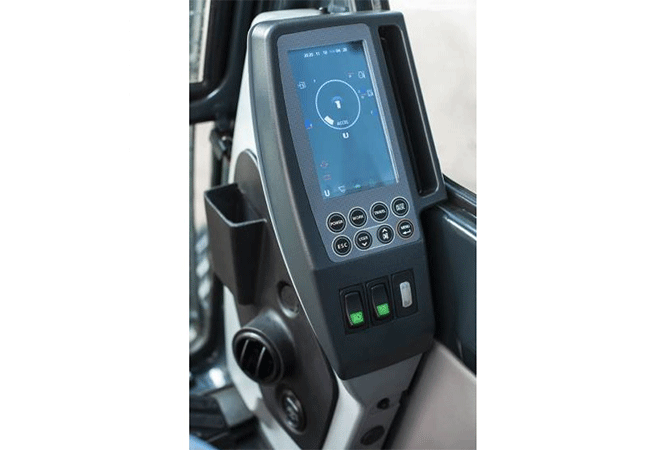

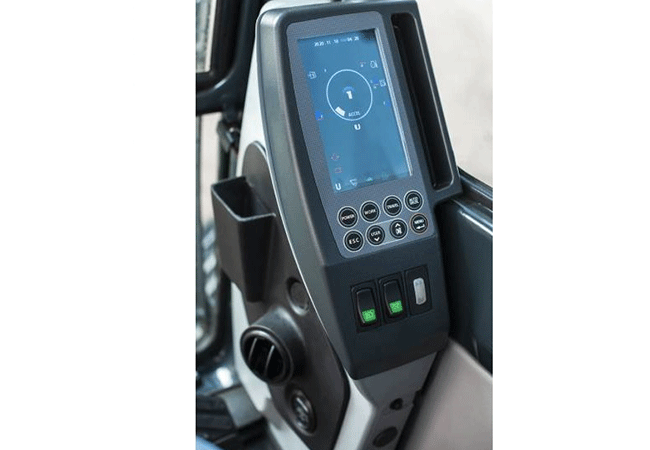

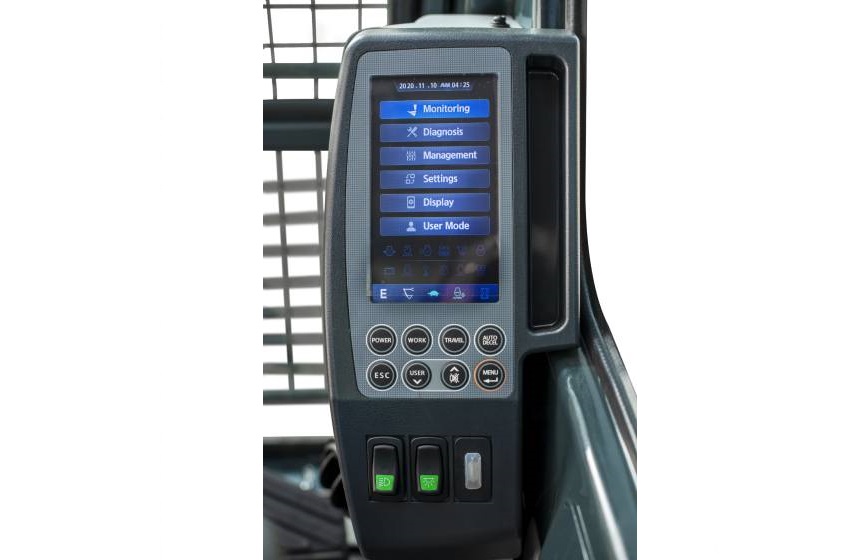

Digital Cluster
The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, two work modes and two User Modes.

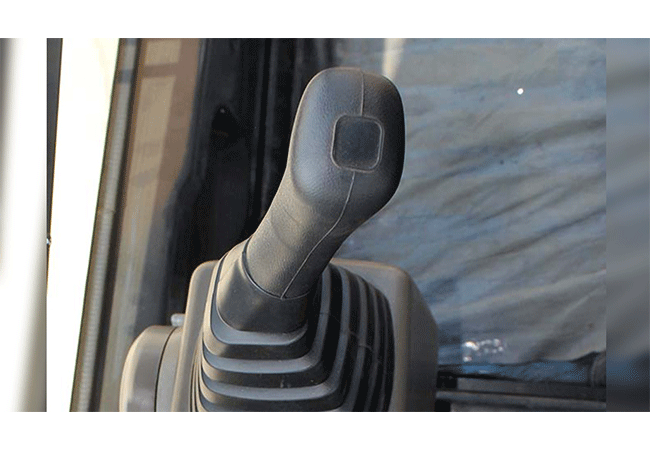

One-Touch & Auto-Idle
One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. The saves fuel by regulating pump and engine. Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.

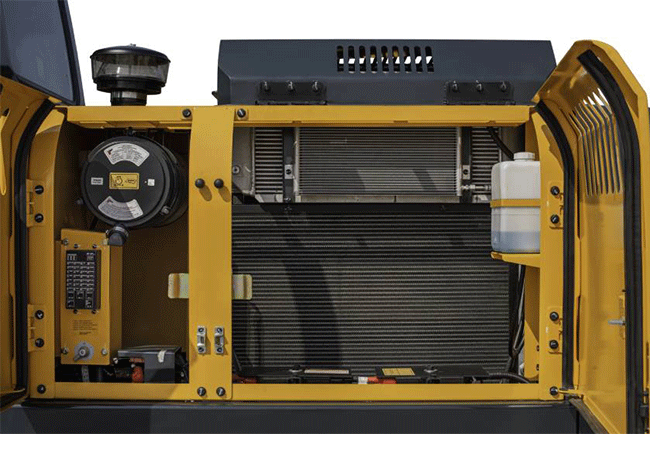

Charge Air Cooler System
The system cools the air as it passes through the turbocharger. It results in cool, high-density air of bigger mass being pumped to the engine. This helps to achieve deliver more power output per unit of fuel burnt and high fuel efficiency.

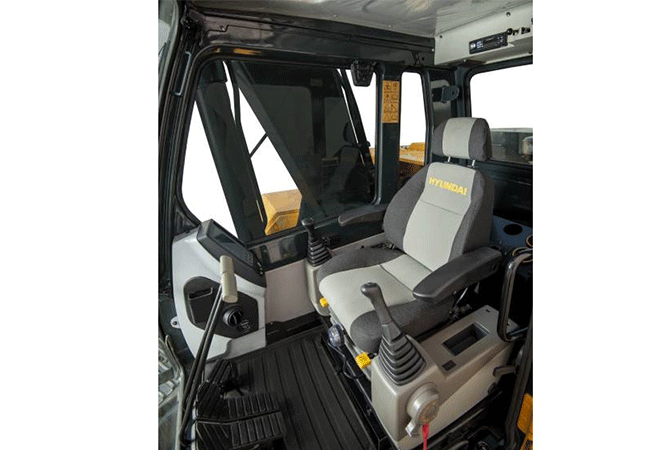

Comfort
The spacious Air Conditioned cabin creates a very comfortable working environment for the operator. The seat comes with 7 Adjustments including seat height movement. Soft joystick control ensures increased productivity and higher operator efficiency.
Exclusive Breaker Mode
Breaker Mode is provided to optimize the energy requirement of Rock breaker and ensures maximum productivity and low fuel consumption.

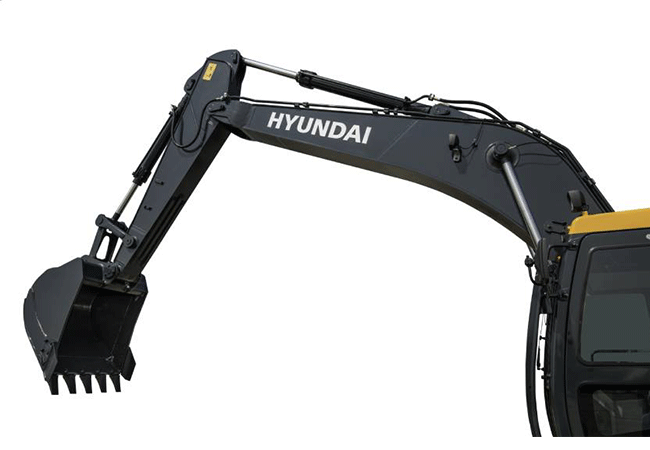

Strong Boom & Arm
Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to maximize impact strength.

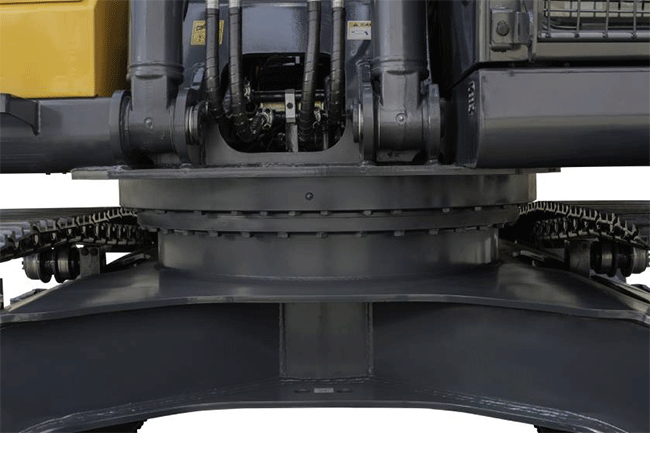

Forged Ring Body
New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

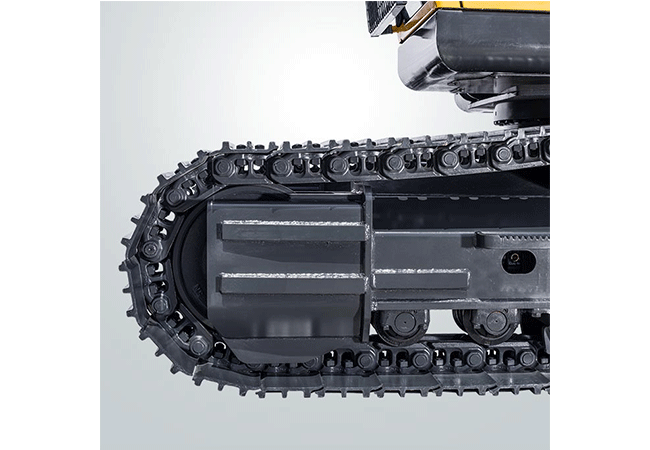

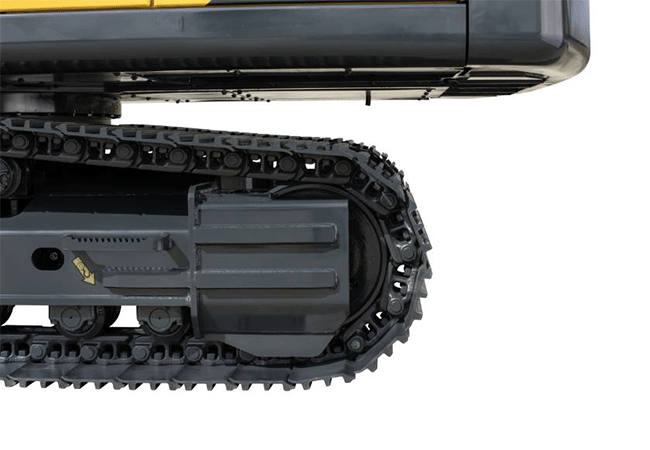

Heavy Duty Undercarriage
Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains

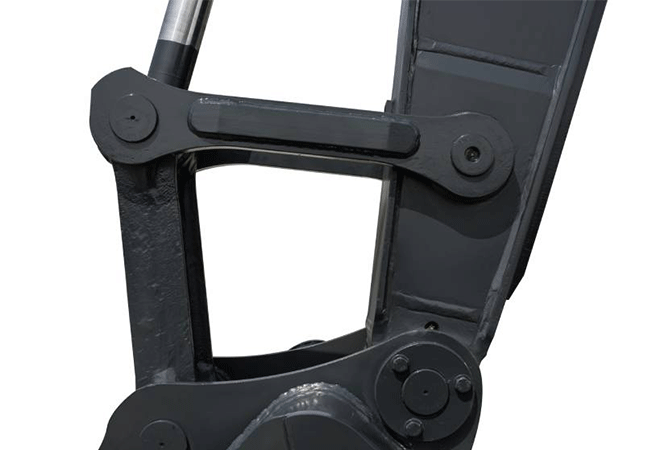

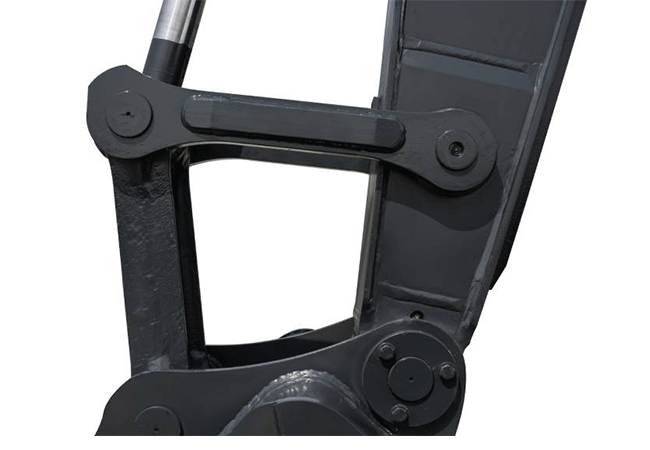

Reinforced Bucket Linkage
Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.
Engine Over heat Prevention
This feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure.

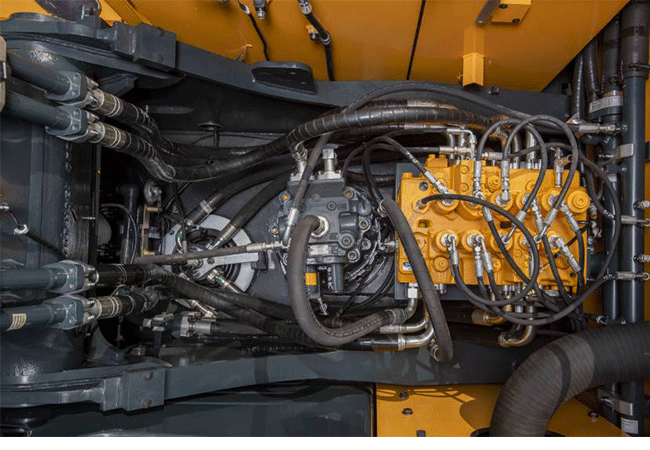

Counterbalance & Holding Valve
The Counterbalance Valve prevents the machine from rolling down on steep slopes by applying hydrostatic braking. The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.

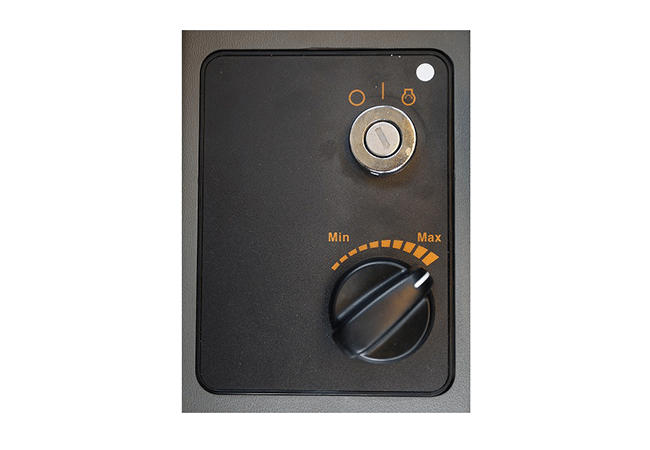

Anti-Restart System
This feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine
Warning Lamps
Warning lamps are provided in the display cluster to alert the operator about hydraulic oil temperature, engine coolant temperature, etc. So that safe levels of the respective components can be maintained easily
- Engine model Cummins 6BTAA5.9C
- Gross power (HP) 148 HP @ 2000 rpm
- Operating weight 22200 Kgs
- Bucket range 0.87-1.2 cu.m
- Swing speed 11 rpm
- Travel speed, high/ low 5.3/ 3.4 km/hr
- Max. digging reach on ground 9500 mm
- Max. digging depth 6220 mm
- Tail swing radius 2830 mm
- Bucket digging force 15500 kgf.
- Arm crowd force 12000 kgf.
