Cummins
395 mm & 430 mm Dia Cover Assembly
| Features | Advantages | Benefits |
|---|---|---|
| Weight optimized Sheet Metal Cover | Improved heat absorption & reduced facing wear | Increased reliability |
| Chrome Vanadium spring steel Diaphragm | High fatigue life of fingers | Better service life Higher Durability |

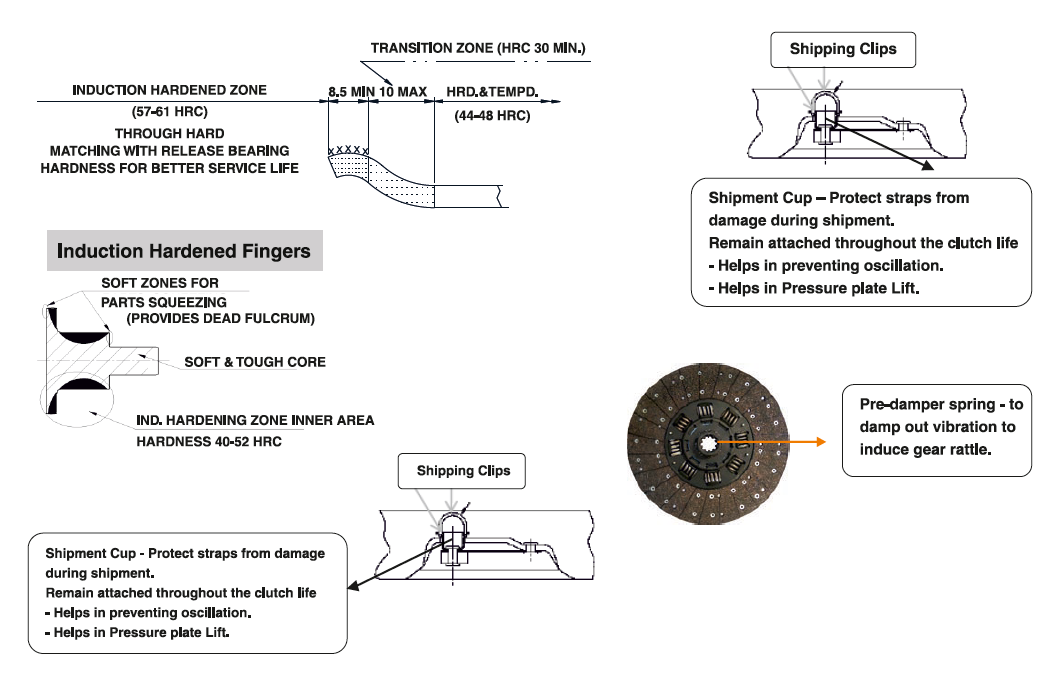

| Induction hardened Boron steel ** Diaphragm spring holding rivets | Minimized Wear | Higher durability |
| Comes with transit clamp (Shipping slip) | Eliminate straps buckling | Lesser transit damage |
395 mm & 430 mm Cluth Disc
| Features | Advantages | Benefits |
|---|---|---|
| Co-axial Springs available | For Smooth transitioning | Smoother operation |
| Chrome Silicon Springs | higher fatigue life | Better durability |
| Torque at 80% Safety Factor | for smooth engagement & to eliminate Transmission Noise. | Lower noise |
| Thicker Drive Hub with high manganese toughened steel | Improved shock loading capacity | Better shock resistance with reduced gear rattle |
| Carbo nitired back plates & front plates | Lower wear and stop window biting by spring | Higher reliability |
| Cushion Spring provided | Improved cushioning and Better Heat Dissipation | Lower driver fatigue |
| Robust Clutch Facing | High co-efficient of friction for better heat conductivity | Increase services life |
Clutch Application Chart
| Sr.No | Cummins Part No. | Clutch size (Diameter) | Application |
|---|---|---|---|
| 1 | AX1016906 | 395 | Clutch - Diaphragm Cover Assy 395 Dia TATA |
| 2 | AX1016906 | 395 | Clutch - Clutch Disc 395 Dia TATA with 1.5" Spline |
| 3 | AX1016906 | 430 | Clutch - Diaphragm Cover Assy 430 Dia TATA prima |
| 4 | AX1016906 | 430 | Clutch - Clutch Disc 430 Dia TATA Prima with 2" Spline |
| 5 | AX1016906 | 395 | Clutch - Diaphragm Cover Assy 395 Dia Bharat Benz |
| 6 | AX1016906 | 395 | Clutch - Clutch Disc 395 Dia Bharat Benz 18Teeth with 1.75" Spline |
| 7 | AX1016906 | 430 | Clutch - Clutch Disc 430 Dia Bharat Benz 18Teeth with 1.75" Spline |
| 8 | AX1016906 | 430 | Clutch - Diaphragm Cover Assy 430 Dia Bharat Benz |
| 9 | AX1016906 | 395 | Clutch - Diaphragm Cover Assy 395 Dia Man Truck |
| 10 | AX1016906 | 395 | Clutch - Clutch Disc 395 Dia Man Truck with 1.5" Spline |
| 11 | AX1016906 | 430 | Clutch - Clutch Disc 430 Dia Man Truck 1.5" Spline |
| 12 | AX1016906 | 430 | Clutch - Diaphragm Cover Assy 430 Dia Man |
| 13 | AX1016906 | 395 | Clutch - Diaphragm Cover Assy 395 Dia Mahindra Navistar |
| 14 | AX1016906 | 395 | Clutch - Clutch Disc 395 Dia Mahindra Navistar 10Teeth with 1.75" Spline |
