HX 360L

Performance Convenience Efficiency Servicibility Safety

Maximum Performance, Minimum Fuel

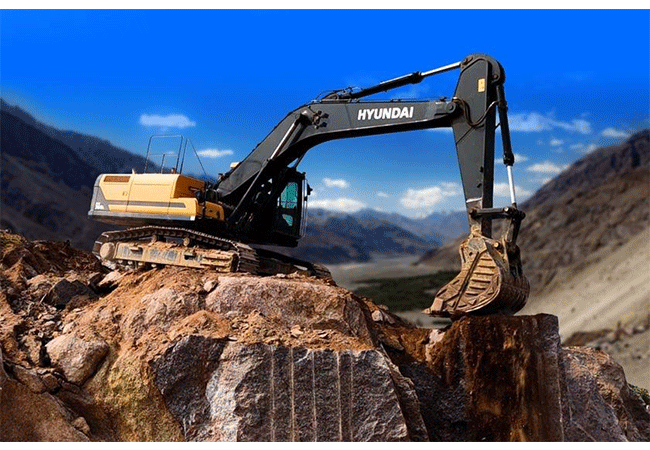

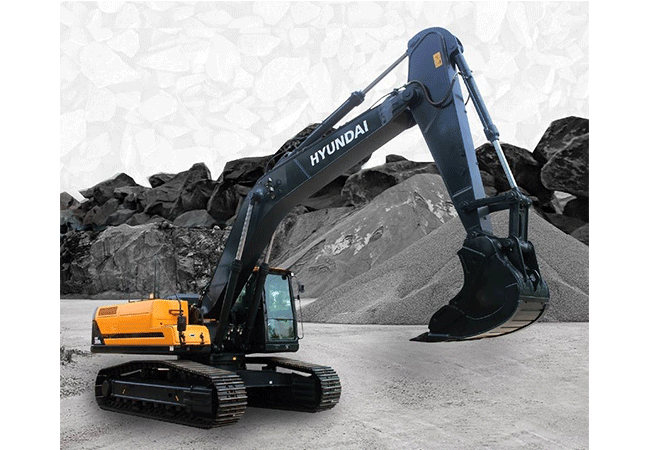

The HX 360L Mining Excavator delivers maximum performance with minimum fuel use, combining advanced technology and smart features to boost productivity.

Performance:

  • Variable Power Control

    The HX series features three power modes for optimal performance: P mode delivers maximum power for heavy tasks, S mode balances performance and fuel efficiency for general work, and E mode enhances control and efficiency for light operations.

    Powerful Engine

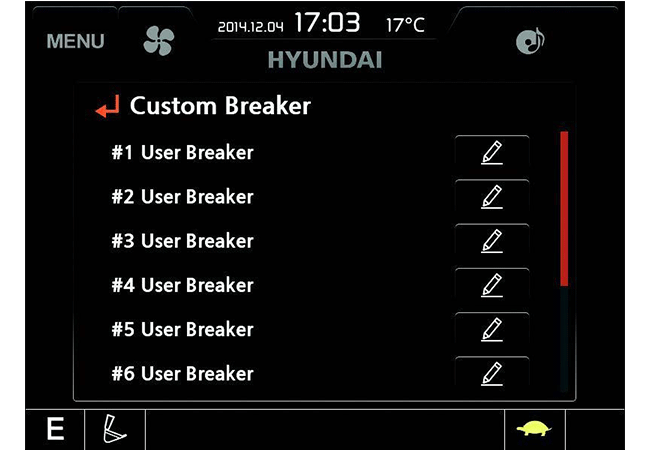

  • Attachment Flow Control

    The HX series offers independent dual-pump control and automatically adjusts flow rates for different attachments, making it ideal for a wide range of applications.

    Powerful Engine

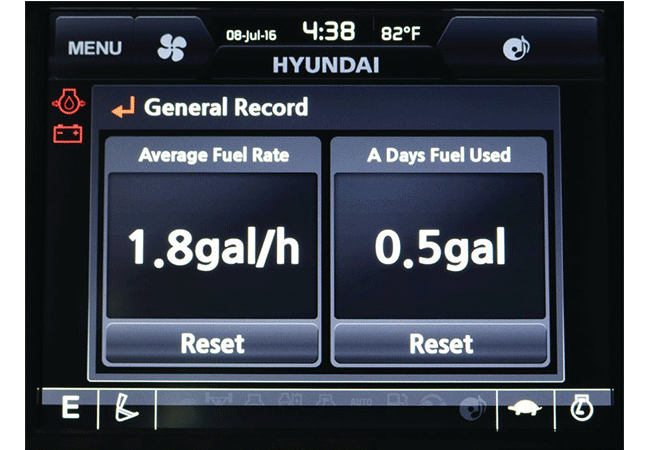

  • Fuel Efficiency

    HX series excavators use Tier 4 Final engines and advanced hydraulics to deliver up to 10% better fuel efficiency than the previous series.

    Powerful Engine

  • Cycle Time Improvement

    Hyundai HX series excavators use advanced hydraulic systems to deliver up to 5% faster cycle speeds, boosting productivity.

    Powerful Engine

Convenience:

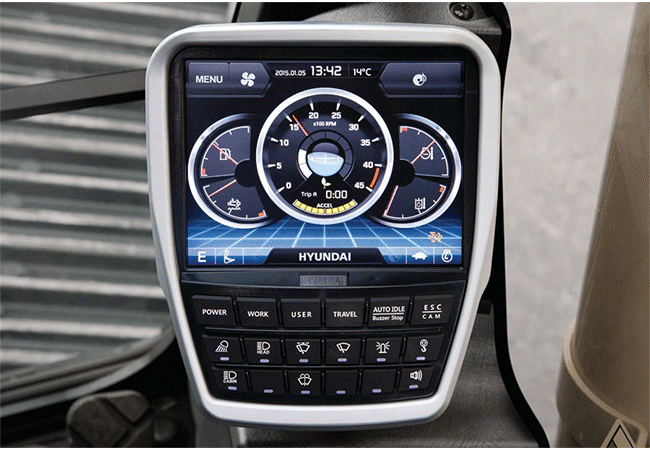

  • Intelligent 8" Touchscreen Monitor

    The 8-inch touchscreen display with centralized switches lets operators easily monitor and control machine functions and diagnostics in one place.

    Powerful Engine

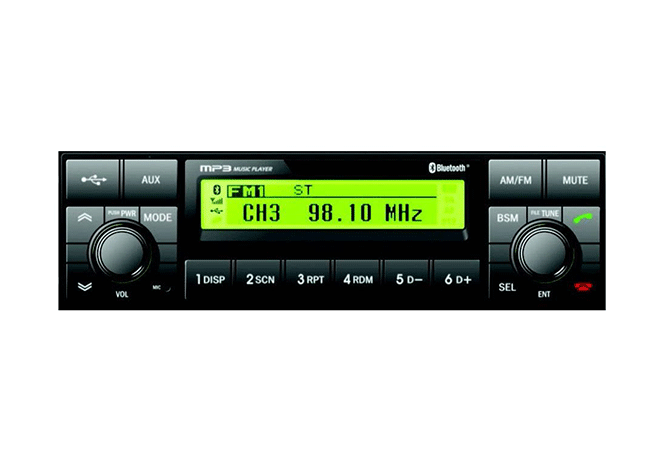

  • Advanced Audio System

    The audio system features AM/FM, USB MP3, Bluetooth hands-free calling, and a built-in microphone, with all controls conveniently placed on the operator’s right side.

    Powerful Engine

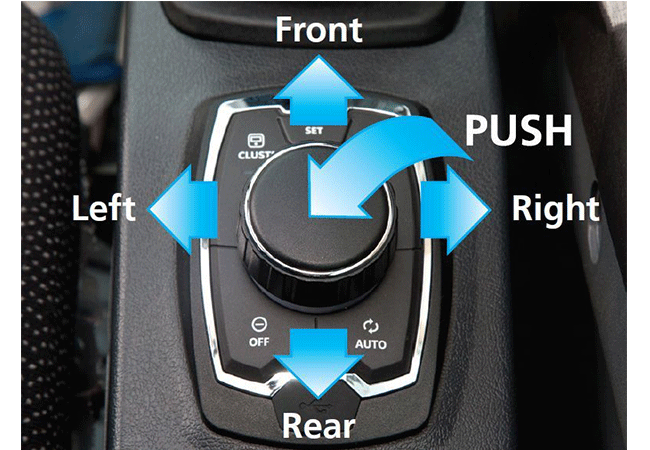

  • Innovative Haptic Control

    Haptic control uses vibrations to guide operators through menu selections, making it easier to adjust the accelerator, air conditioning, and cluster functions for enhanced convenience.

    Powerful Engine

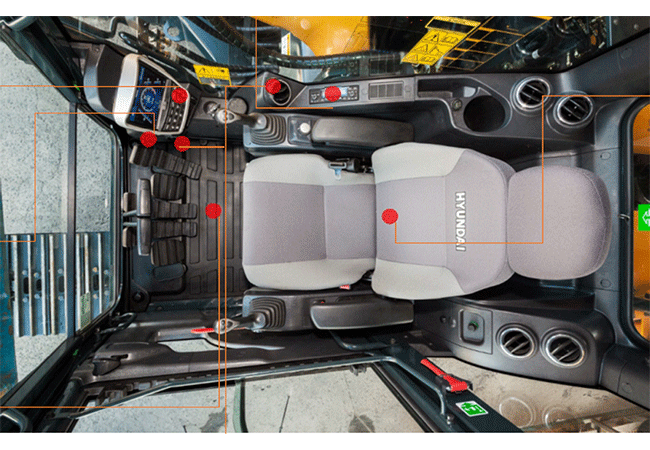

  • Deluxe Operator's Seat

    HX Series excavators offer fully adjustable air-suspension seats with heating and adjustable armrests for maximum operator comfort.

    Powerful Engine

Efficiency :

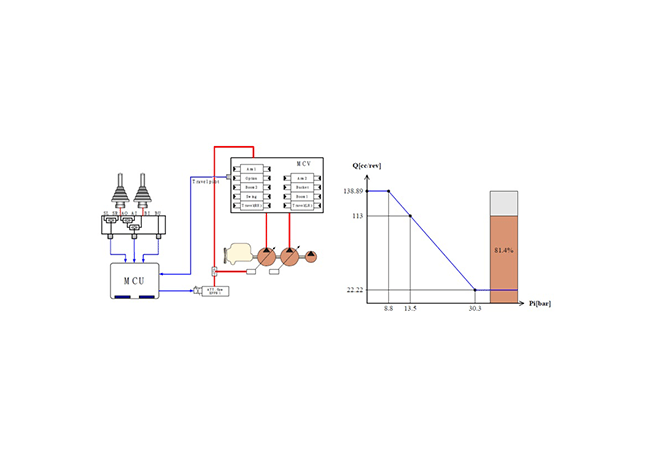

  • IPC (Intelligent Power Control)

    The IPC adjusts power based on the work environment. Its modes are selectable from the monitor, and in excavation mode, pump flow can be controlled by a lever to reduce fuel consumption.

    Powerful Engine

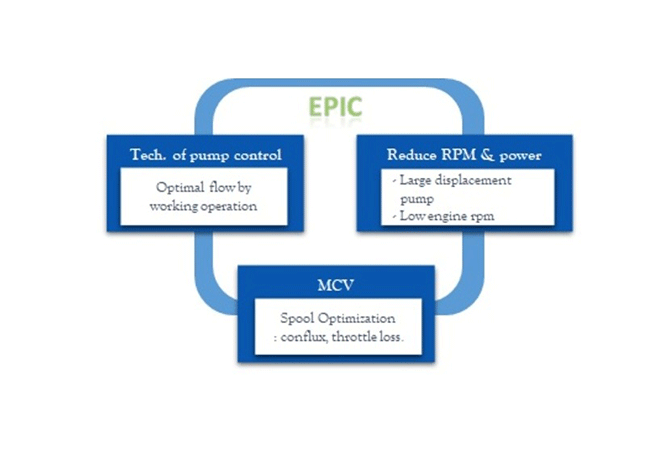

  • EPIC (Electric Pump Independent Control)

    EPIC mode optimizes pump and power flow based on operations like boom down, leveling, and swing relief cut, helping reduce fuel consumption.

    Powerful Engine

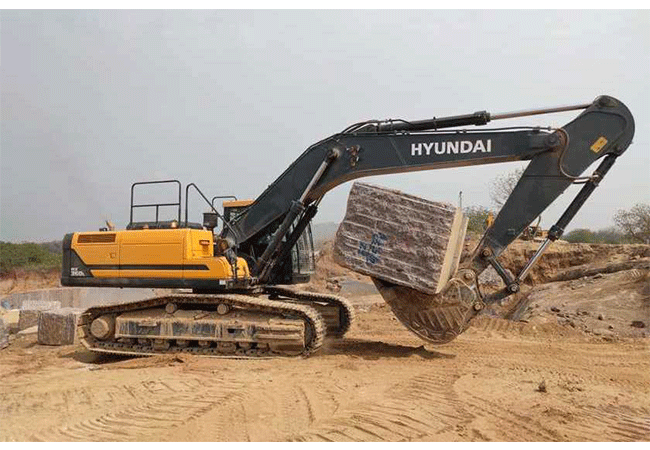

  • Special Purpose Bucket

    Special Purpose Buckets are engineered for marble and granite block handling, delivering high digging forces through optimized hydraulics and attachments.

    Powerful Engine

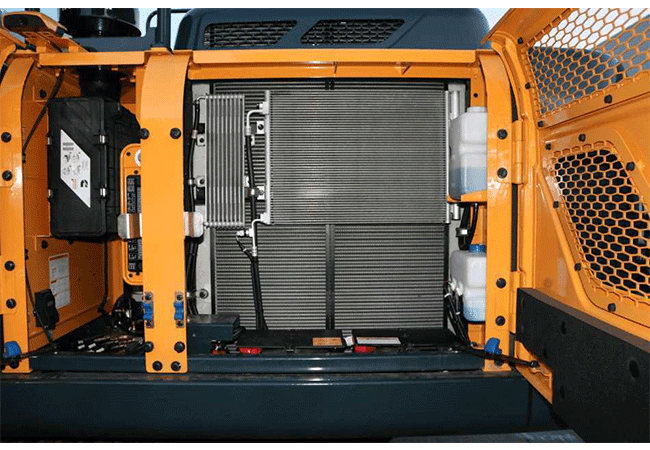

  • New Cooling System

    The improved cooling module boosts airflow and enhances heat dissipation for superior cooling performance.

    Powerful Engine

Serviceability :

  • HI- MATE

    Hi-MATE, Hyundai’s advanced remote management system, uses GPS technology to let users monitor machine performance, access diagnostics, and track machine location instantly.

    Powerful Engine

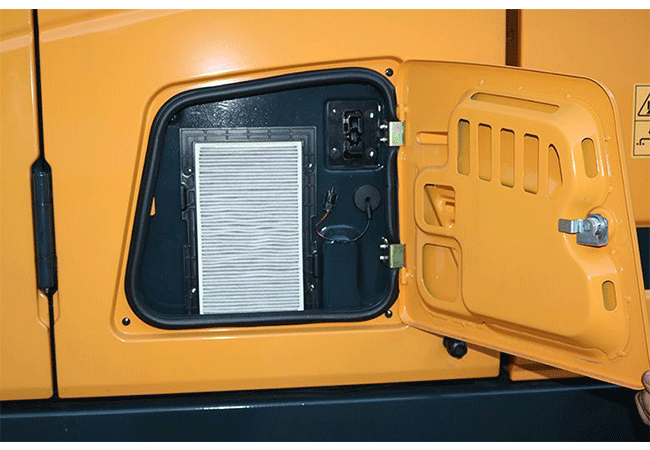

  • Cab Air Filter Access

    Cab air filter is conveniently accessible from ground level by way of a lockable door on the cab.

    Powerful Engine

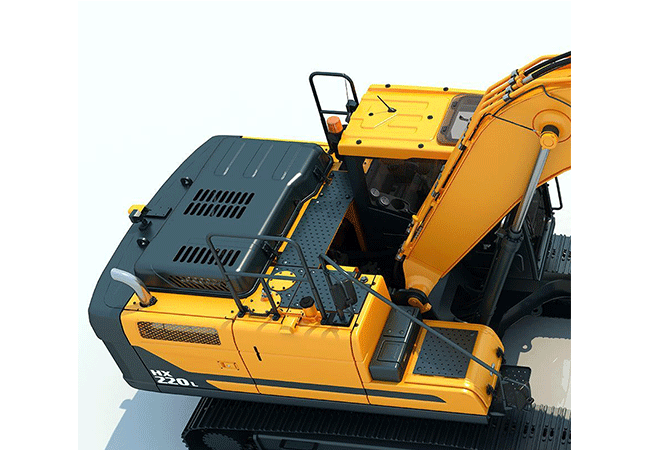

  • Upper Structure Access

    HX series excavators feature large grab rails, guard rails, and anti-slip surfaces for safer, easier access to key service areas.

    Powerful Engine

  • Stacked Cooler Design

    HX series excavators use stacked aluminum open-core coolers for better airflow, higher cooling efficiency, and easier serviceability.

    Powerful Engine

Safety :

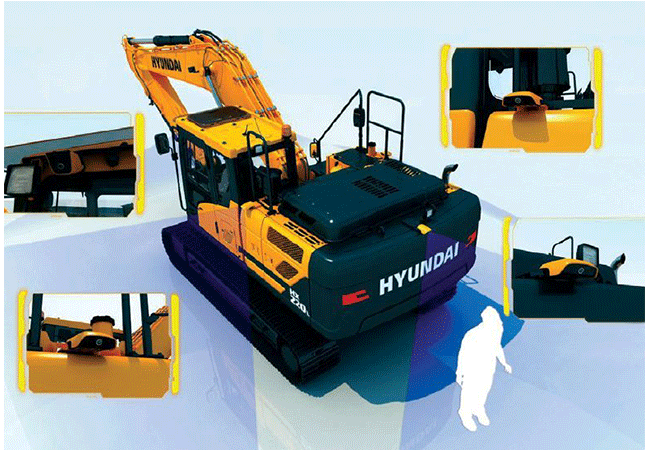

  • AAVM (All Around View Monitoring)

    The Hyundai-exclusive AAVM system gives operators a 360° view for enhanced safety, while IMOD detects and alerts them to moving objects or people within a 5-meter range.

    Powerful Engine

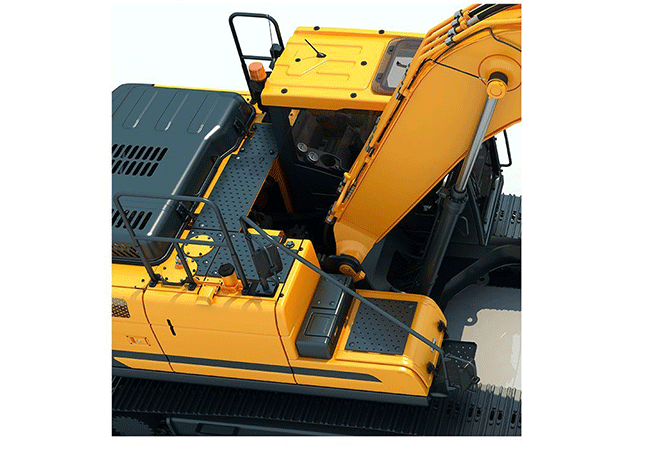

  • Grab Rails & Guard Rails

    Large upper grab rails coupled with left and right side guard rails facilitate access to the upper while reducing potential falls.

    Powerful Engine

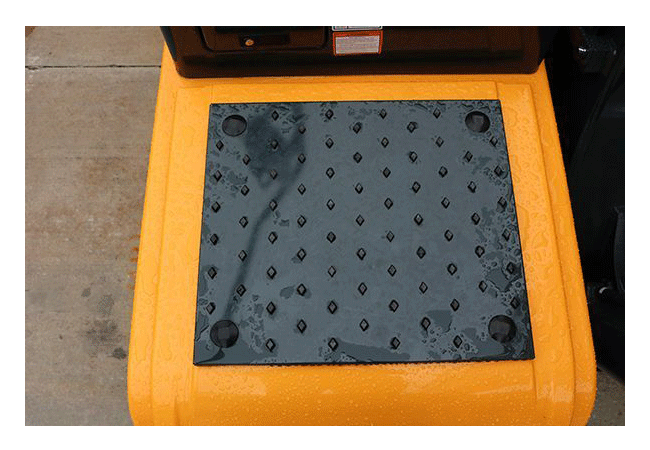

  • Anti-slip Surface

    Hyundai’s patented anti-slip surface prevents slips during upper-structure work and offers a knee-friendly rubber tread for safer, more comfortable inspections.

    Powerful Engine

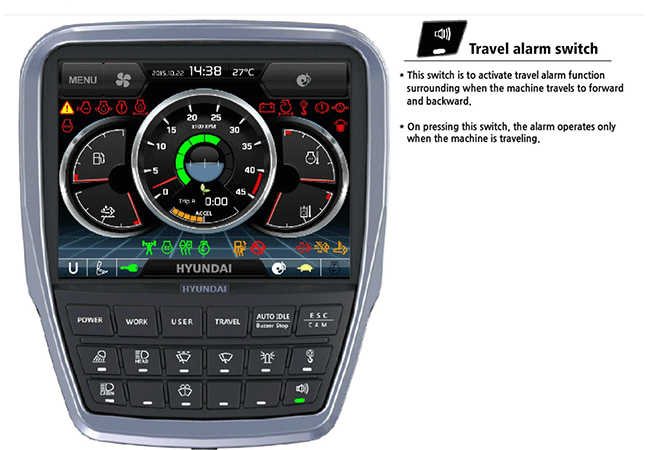

  • Auto-travel Alarm

    The auto-travel alarm activates during forward or reverse movement, alerting nearby workers for improved safety. It can be turned off using a convenient switch.

    Powerful Engine
HX360L-Final_brochures Brochures
HX360L-Final_brochures Download Brochure
Engine Model HYUNDAI HM 8.3 Gross Power (HP) 265 HP @ 2000 rpm
Operating Weight 35500 Kgs Bucket Range 2.1 m³ GP / 1.44 m³ Rock HD / 1.62 m³ HD
Swing Speed 11.2 rpm Travel Speed (High/Low) 5.0 / 3.1 km/hr
Max. Digging Reach on Ground 10290 mm Max. Digging Depth 6820 mm
Tail Swing Radius 3570 mm Bucket Digging Force 23450 kgf
Arm Crowd Force 21100 kgf
