R35Z-9

Performance Efficiency Durability Safety

Best-in-Class Performance for Maximum Productivity

The R35 Z-9 Hyundai excavator is the machine made for agriculture and civil earth-moving activities. Its specifications and features are best-in-class. With this machine, you can be assured that you will always get maximum work done at minimum fuel consumption.

Performance:

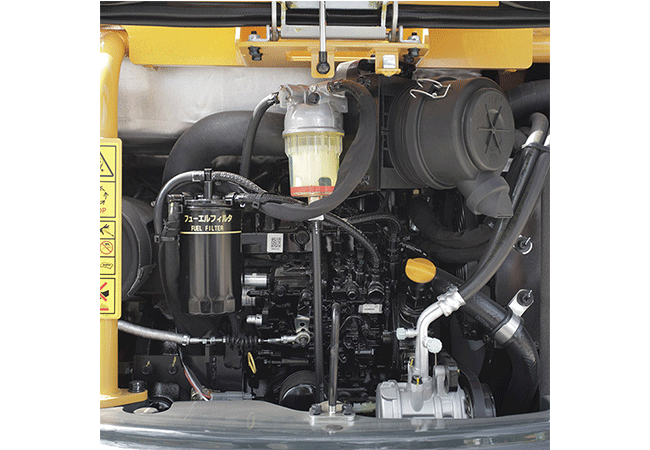

  • Powerful Engine

    Tier-4 Yanmar 3TNV88 engine delivers 27.3 HP @ 2200 rpm with high power, better fuel economy, and low noise.

    Powerful Engine

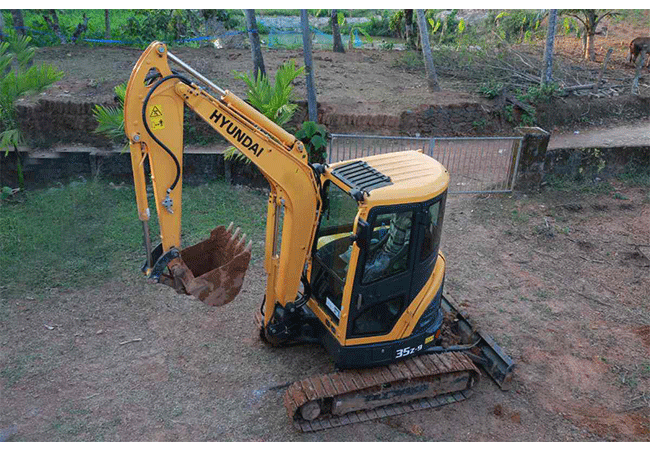

  • Zero-Tail Swing

    The short tail swing radius allows the operator work without problems in narrow spaces, like alleys, in urban areas.

    Powerful Engine

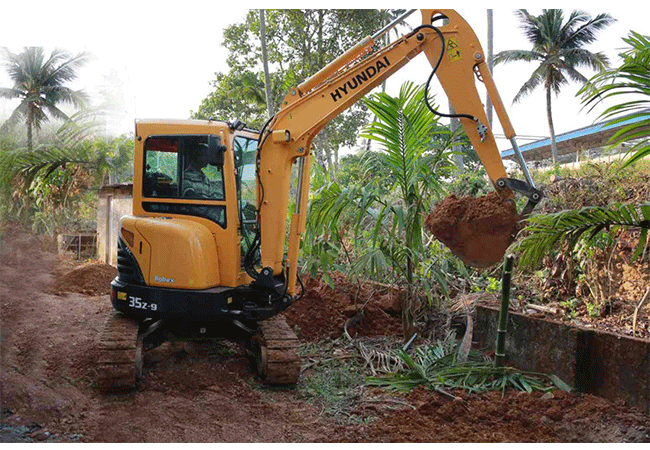

  • Fast Swing Speed

    Fast joystick-to-MCV synchronization enables quicker response, smoother operation, and improved cycle times.

    Powerful Engine

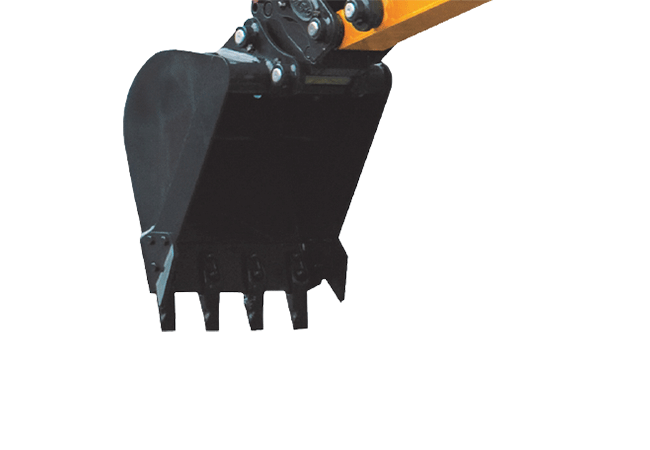

  • High Bucket Digging Forces

    The Hydraulics and attachments are designed to offer high digging forces.

    Powerful Engine

Efficiency:

  • Boom Swing Function

    TThis function enables easier work in congested urban or residential areas, allowing the boom to offset left or right within the operating range.

    Powerful Engine

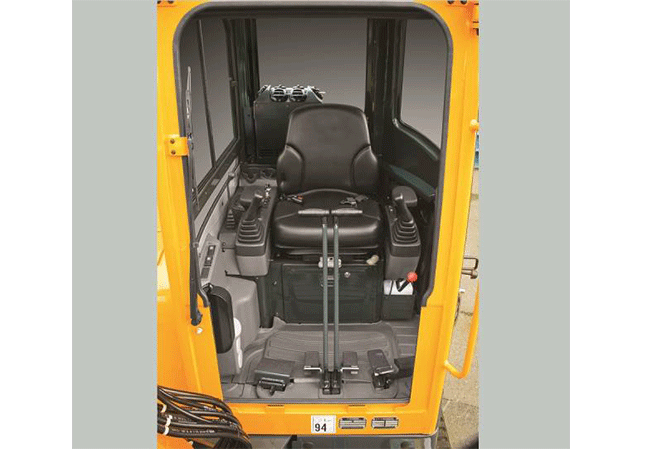

  • Comfortable Operator Cabin

    The ergonomically designed cabin enhances productivity with adjustable seating, intuitive controls, well-placed pedals, and an optional AC for added comfort.

    Powerful Engine

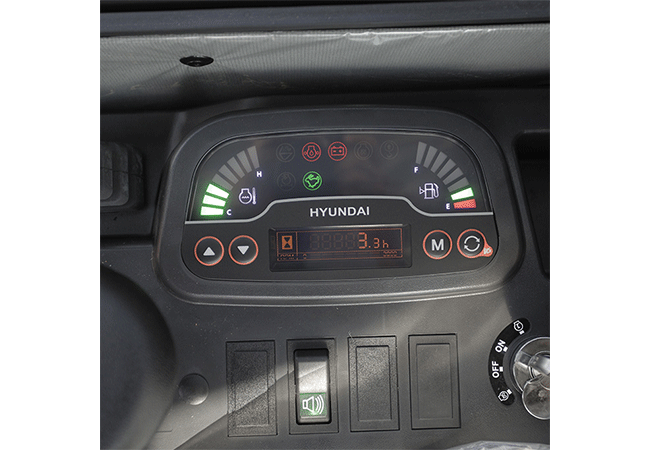

  • Centralized Monitoring System

    The system clearly displays key machine data warnings, temperature, fuel, hours, oil pressure, battery, and coolant levels for easy monitoring and control.

    Powerful Engine

  • Foldable Pedals

    Foldable pedals provide extra floor space, with all controls ergonomically positioned for easy access.

    Powerful Engine

Durability:

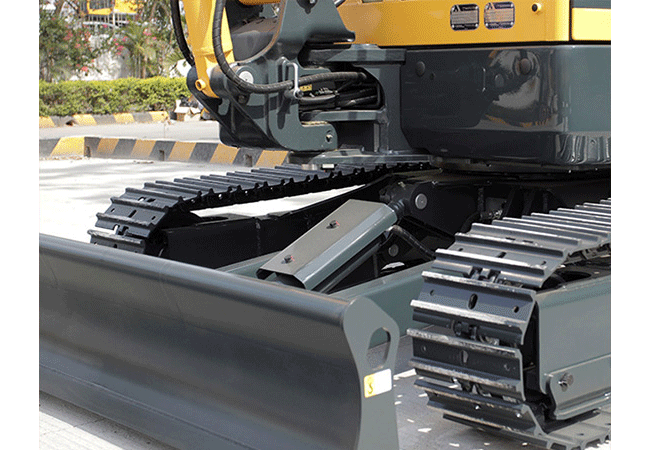

  • Upper & Lower Frame

    High-strength, low-stress steel frame ensures durability, validated through FEM analysis and long-term testing.

    Powerful Engine

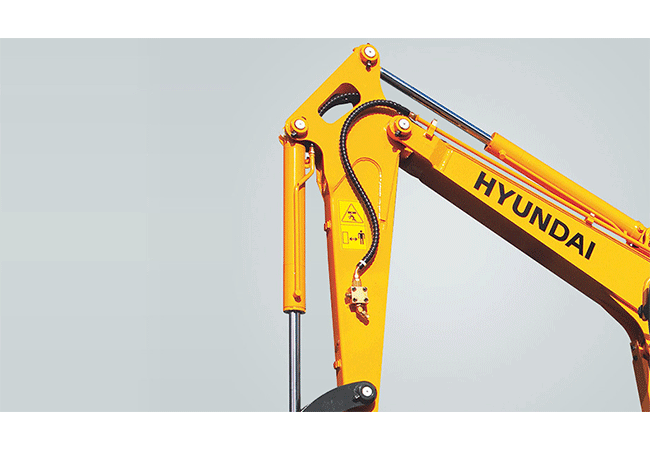

  • Strong Boom & Arm

    High-tensile steel boom and arm reinforced with bearings and baffle plates for maximum strength.

    Powerful Engine

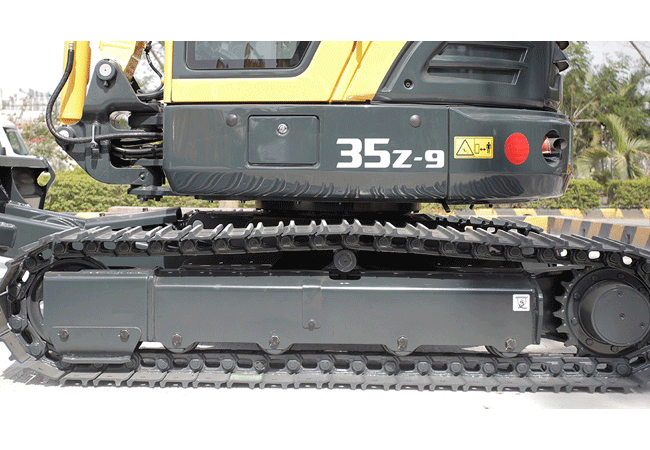

  • Durable Track & Roller

    The tracks and roller are made from high tensile steel, which lends them high durability in heavy duty operations.

    Powerful Engine

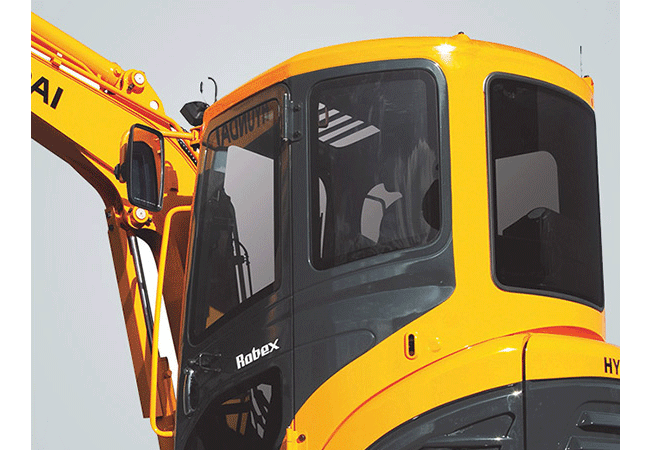

  • Structural Strength

    The R35Z-9 cabin structure has been fitted with stronger but slimmer tubing for added safety and improved visibility

    Powerful Engine

Safety:

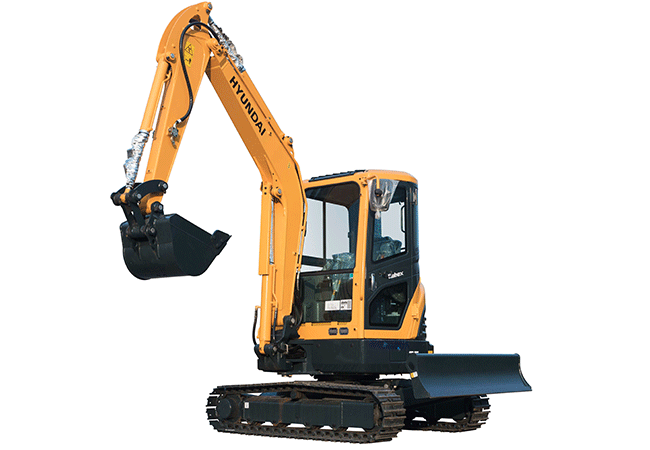

  • Boom Safety Holding Valve

    The Holding Valve keeps attachments locked and prevents them from drifting due to gravity during prolonged overhanging.

    Powerful Engine

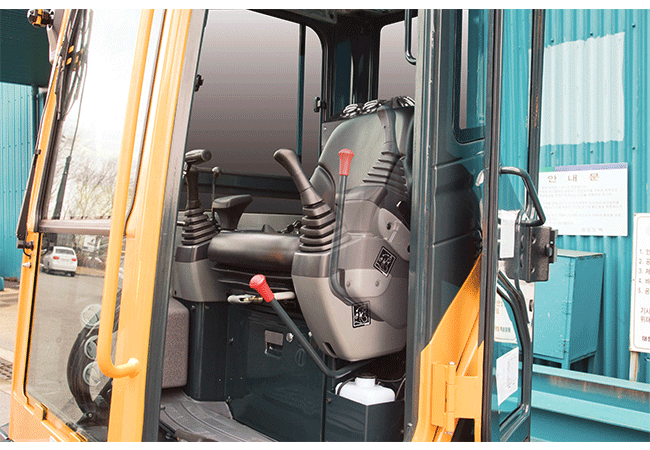

  • Safety Lever

    This feature locks hydraulic functions to prevent unintended movements, ensuring enhanced safety.

    Powerful Engine

  • Automatic Swing Brake

    This feature locks the boom and arm while the machine is travelling, thus preventing any accident.

    Powerful Engine

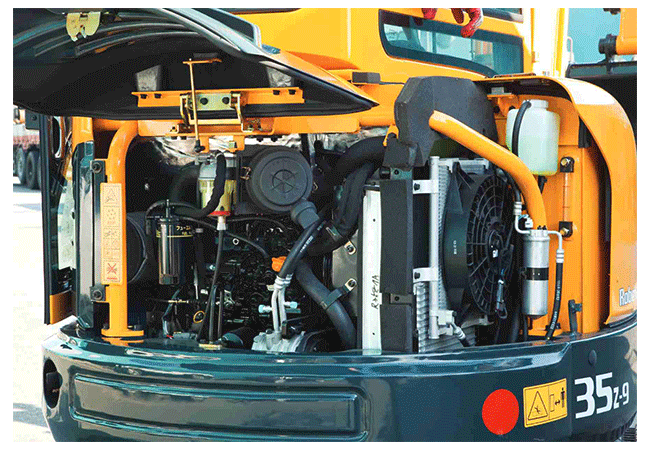

  • Engine Fan Guard

    The guard provides an added safety layer for mechanics during engine maintenance while running.

    Powerful Engine
R35Z-9 Brochures
Mini_Excavtor_R35 Download Brochure
Hyundai_R35Z Download Brochure
Engine Model Yanmar 3TNV88 Gross Power 27.3 HP @ 2200 rpm
Operating Weight 3750 Kgs Bucket Range 0.11 cu.m
Swing Speed 9.5 rpm Travel Speed (H/L) 4.5 / 2.5 km/hr
Max Digging Reach 5240 mm Max Digging Depth 3150 mm
Tail Swing Radius 870 mm Bucket Digging Force 3200 kgf
Arm Crowd Force 1990 kgf
