R220

Performance Efficiency Durability Safety

Built for Maximum Productivity

The 220LS SMART Plus Hyundai excavator delivers high performance with a powerful engine, superior stability, large buckets, and enhanced operator comfort—ensuring maximum productivity.

Performance:

  • Powerful Engine

    The water-cooled 6-cylinder Cummins 6BTAA5.9C engine delivers 148 HP @ 2000 rpm with optimized fuel and oil use, low noise, and reliable performance even in high-heat, humid, and dusty conditions.

    Powerful Engine

  • Arm Regeneration

    Arm regeneration recirculates hydraulic energy for smoother, faster arm operation while preventing cavitation and improving overall performance.

    Powerful Engine

  • Digital Cluster

    The digital cluster shows vital machine data, while operators can optimize performance using two power modes, two work modes, and two user modes.

    Powerful Engine

  • High Bucket Digging Forces

    The Hydraulics and attachments are designed to offer high digging forces.

    Powerful Engine

Efficiency:

  • One-touch & Auto-idle

    The one-touch deceleration switch lowers engine RPM to save fuel. Auto Idle further reduces RPM when the machine is inactive for 4 seconds, cutting fuel consumption and operating costs.

    Powerful Engine

  • Change Air Cooled System

    The system cools turbocharged air to increase its density, allowing more air into the engine. This delivers higher power output and improves fuel efficiency.

    Powerful Engine

  • Comfort

    The spacious AC cabin enhances operator comfort, with a 7-way adjustable seat and soft joystick controls for improved productivity and efficiency.

    Powerful Engine

  • Exclusive Breaker Mode

    Breaker Mode optimizes energy use for rock breakers, ensuring maximum productivity with lower fuel consumption.

    Powerful Engine

Durability :

  • Strong Boom & Arm

    The high-tensile boom and arm are reinforced with steel bearings and baffle plates for maximum impact strength.

    Powerful Engine

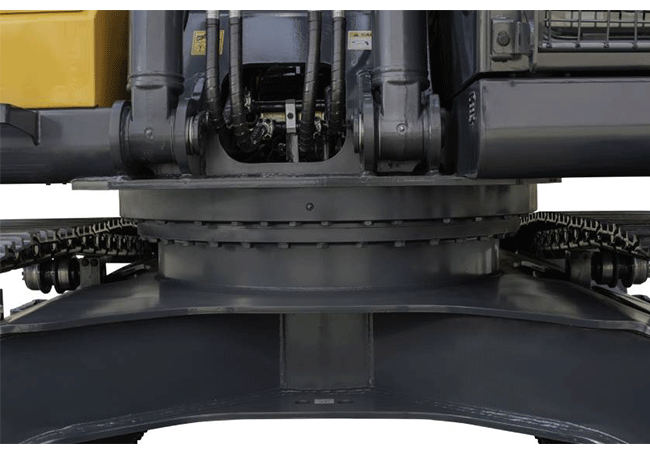

  • Forged Ring Body

    New forged ring body in lower frame enhances the durability, structural integrity and increases the machine life.

    Powerful Engine

  • Heavy Duty Undercarriage

    Side member reinforcement protects the idler in tough terrain, while the heavy-duty track shoe ensures greater stability and durability.

    Powerful Engine

  • Reinforced Bucket Linkage

    Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.

    Powerful Engine

Safety :

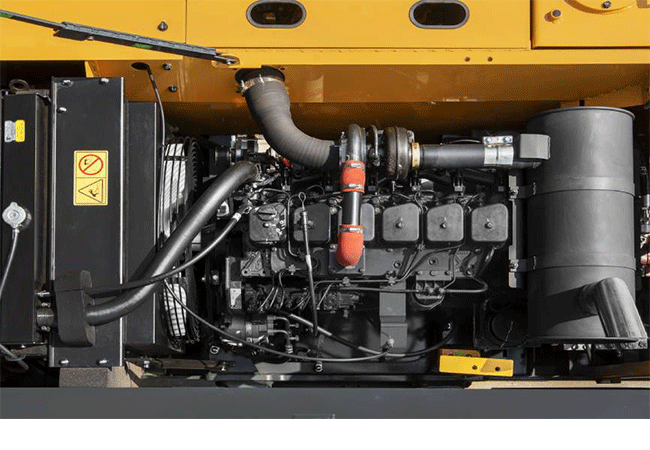

  • Engine Overheat Prevention

    Automatically reduces engine speed during overheating to protect the machine from premature failure.

    Powerful Engine

  • CounterBalance and Holding Value

    The counterbalance valve provides hydrostatic braking to prevent rolling on slopes, while the holding valve locks attachments and prevents gravity-induced drift.

    Powerful Engine

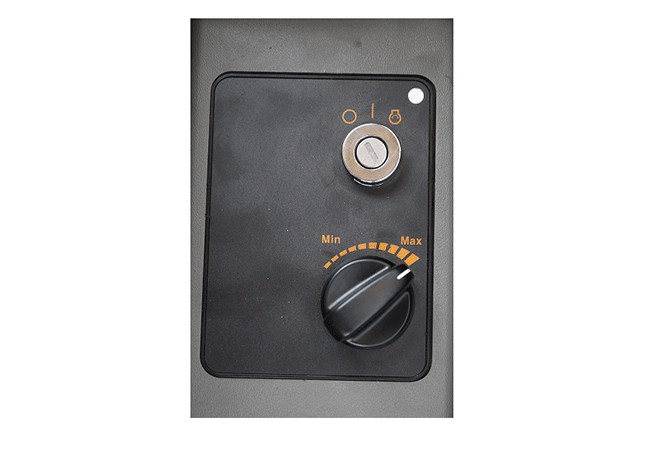

  • Anti-Restart System

    This feature stops the starter from engaging while the engine is running, preventing accidental engine damage.

    Powerful Engine

  • Warning Lamps

    Warning lamps in the display cluster alert the operator to hydraulic oil, engine coolant temperature, and other critical parameters to ensure safe operating levels.

    Powerful Engine
Hyundai_mini_R480 Brochures
Hyundai_mini_R480 Download Brochure
Engine Model Cummins 6BTAA5.9C Gross Power (HP) 148 HP @ 2000 rpm
Operating Weight 22200 Kgs Bucket Range 0.87 – 1.2 cu.m
Swing Speed 11 rpm Travel Speed (High/Low) 5.3 / 3.4 km/hr
Max. Digging Reach on Ground 9500 mm Max. Digging Depth 6220 mm
Tail Swing Radius 2830 mm Bucket Digging Force 15500 kgf
Arm Crowd Force 12000 kgf
