395 mm & 430 mm Dia Cover Assembly
| Features | Advantages | Benefits |
|---|---|---|
| Weight optimized Sheet Metal Cover |
Improved heat absorption & reduced facing wear |
Increased reliability |
| Chrome Vanadium spring steel Diaphragm |
High fatigue life of fingers |
Better service life Higher Durability |

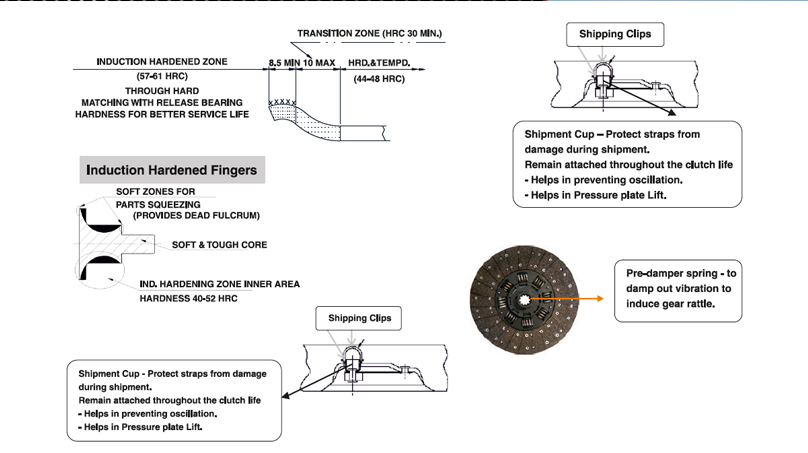

| Induction hardened Boron steel ** Diaphragm spring holding rivets |
Minimized Wear |
Higher durability |
| Comes with transit clamp (Shipping slip) |
Eliminate straps buckling |
Lesser transit damage |
395 mm & 430 mm Cluth Disc
| Features | Advantages | Benefits |
|---|---|---|
| Co-axial Springs available |
For Smooth transitioning |
Smoother operation |
| Chrome Silicon Springs |
higher fatigue life |
Better Durability |
| Torque at 80% Safety Factor |
for smooth engagement & to eliminate Transmission Noise. |
Lower noise |
| Thicker Drive Hub with high manganese toughened steel |
Improved shock loading capacity |
Better shock resistance with reduced gear rattle |
| Carbo nitired back plates & front plates |
Lower wear and stop window biting by spring |
Higher reliability |
| Cushion Spring provided |
Improved cushioning and Better Heat Dissipation |
Lower driver fatigue |
| Robust Clutch Facing |
High co-efficient of friction for better heat conductivity |
Increase services life |
Clutch Application Chart
| Sr.No | Cummins Part No. | Clutch size (Diameter) | Application |
|---|---|---|---|
| 1 |
AX1016906 |
395 |
Clutch - Diaphragm Cover Assy 395 Dia TATA |
| 2 |
AX1016906 |
395 |
Clutch - Clutch Disc 395 Dia TATA with 1.5" Spline |
| 3 |
AX1016906 |
430 |
Clutch - Diaphragm Cover Assy 430 Dia TATA prima |
| 4 |
AX1016906 |
430 |
Clutch - Clutch Disc 430 Dia TATA Prima with 2" Spline |
| 5 |
AX1016906 |
395 |
Clutch - Diaphragm Cover Assy 395 Dia Bharat Benz |
| 6 |
AX1016906 |
395 |
Clutch - Clutch Disc 395 Dia Bharat Benz 18Teeth with 1.75" Spline |
| 7 |
AX1016906 |
430 |
Clutch - Clutch Disc 430 Dia Bharat Benz 18Teeth with 1.75" Spline |
| 8 |
AX1016906 |
430 |
Clutch - Diaphragm Cover Assy 430 Dia Bharat Benz |
| 9 |
AX1016906 |
395 |
Clutch - Diaphragm Cover Assy 395 Dia Man Truck |
| 10 |
AX1016906 |
395 |
Clutch - Clutch Disc 395 Dia Man Truck with 1.5" Spline |
| 11 |
AX1016906 |
430 |
Clutch - Clutch Disc 430 Dia Man Truck 1.5" Spline |
| 12 |
AX1016906 |
430 |
Clutch - Diaphragm Cover Assy 430 Dia Man |
| 13 |
AX1016906 |
395 |
Clutch - Diaphragm Cover Assy 395 Dia Mahindra Navistar |
| 14 |
AX1016906 |
395 |
Clutch - Clutch Disc 395 Dia Mahindra Navistar 10Teeth with 1.75" Spline |
