R30Z-9AK

Performance Efficiency Serviceability Safety

Advanced Hydraulic Efficiency for Maximum Productivity

The 9AK Series Excavator features advanced hydraulic technology for fast, smooth, and precise control. Designed for maximum performance and operator productivity, it offers a customizable work environment to suit individual preferences.

Performance:

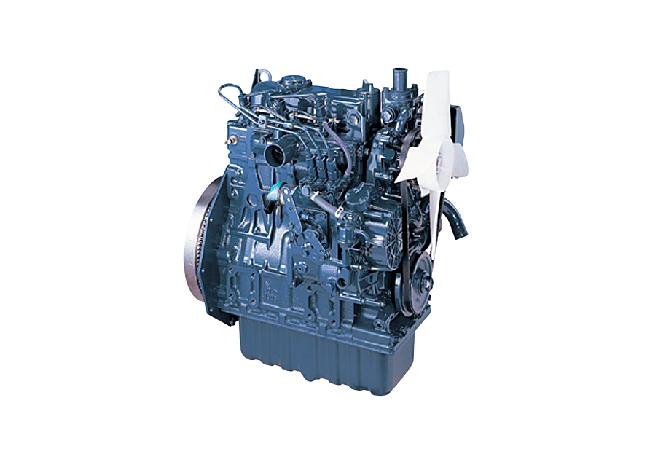

  • Powerful Engine

    The R30Z-9AK features a Tier 4 Final Kubota D1305 4-cycle, water-cooled diesel engine delivering 24.9 HP at 2,350 rpm.

    Powerful Engine

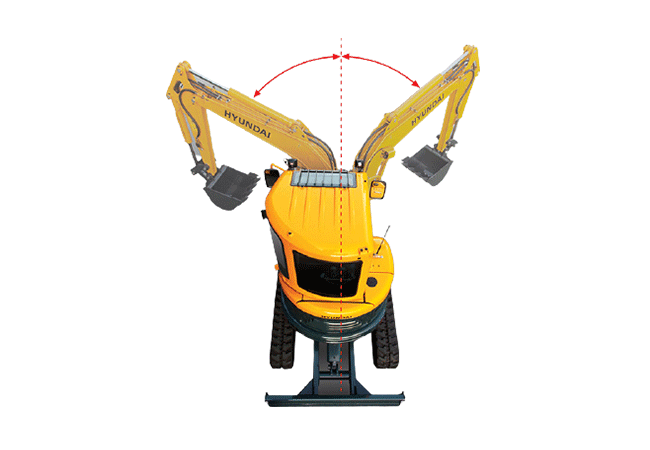

  • Boom Swing

    The 9AK series machines all feature a boom swing function to improve productivity in confined work spaces.

    Powerful Engine

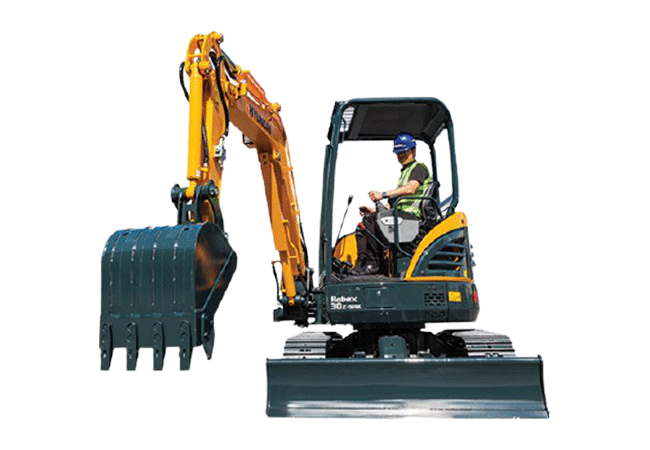

  • Dozer Blade

    All 9AK series excavators feature as standard equipment a large dozer blade that provides added versatility, efficiency and stability.

    Powerful Engine

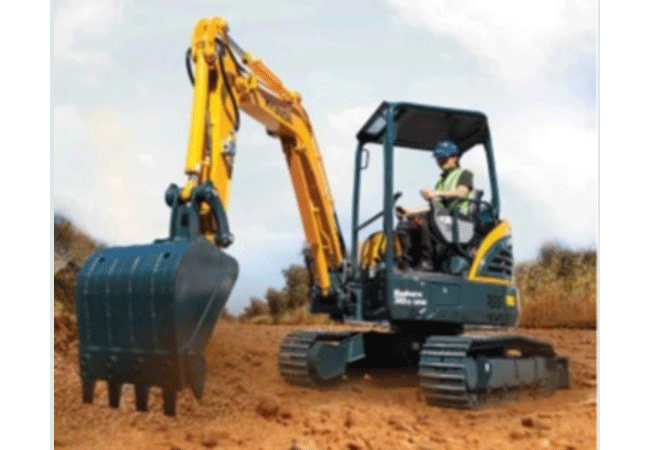

  • Zero-Tail Swing

    Zero-tail swing excavator allows you greater flexibility when working in narrow urban areas from an alley and indoor to residential and small gardens.

    Powerful Engine

Efficiency:

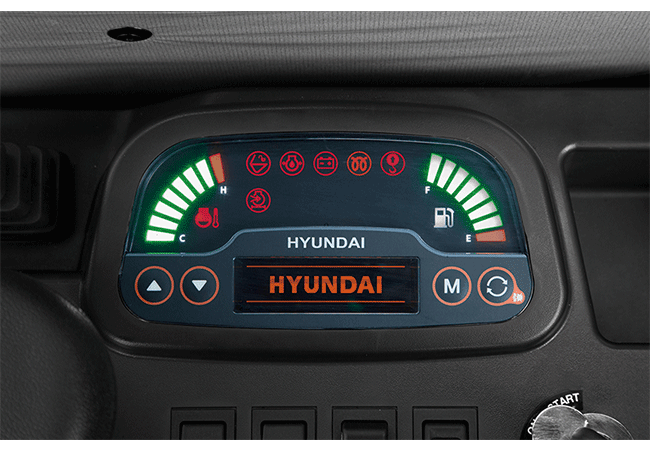

  • Centralized Monitoring System

    The monitoring system of the R30Z-9AK provides the operator with machine status information, including: engine oil pressure lamp, battery charge lamp, engine coolant temperature and a fuel gauge.

    Powerful Engine

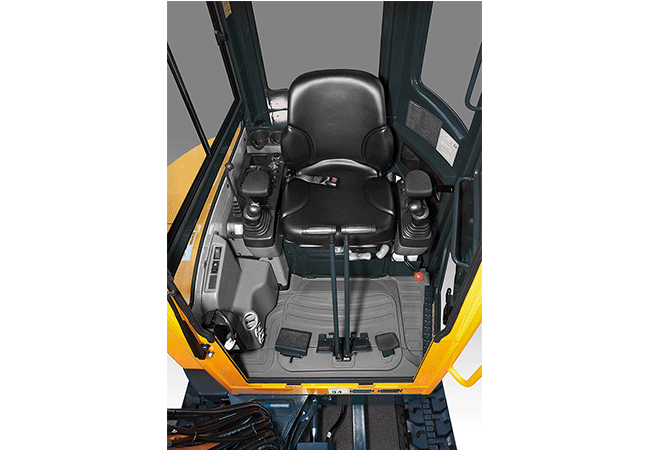

  • Suspension Seat

    Hyundai R30Z-9AK's adjustable suspension seat, wrist rests, ergonomically designed joysticks and plenty of space help to reduce stress on the operator.

    Powerful Engine

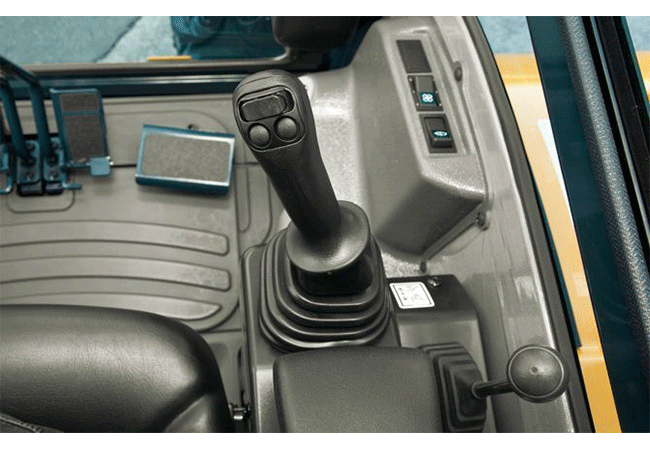

  • Ergonomic Controls & Switches

    The ergonomically positioned control levers and pilot-operated hand controls ensure easy operation of the dozer blade and track extension, enhancing comfort and productivity.

    Powerful Engine

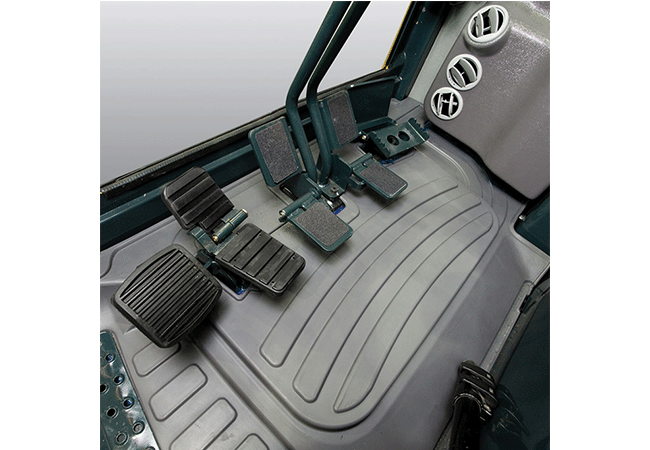

  • Foldable Pedals

    All pedals are foldable for additional floor space. Footrest, attachment pedal, left and right travel pedals and boom swing pedal are arranged for convenient access.

    Powerful Engine

Serviceability:

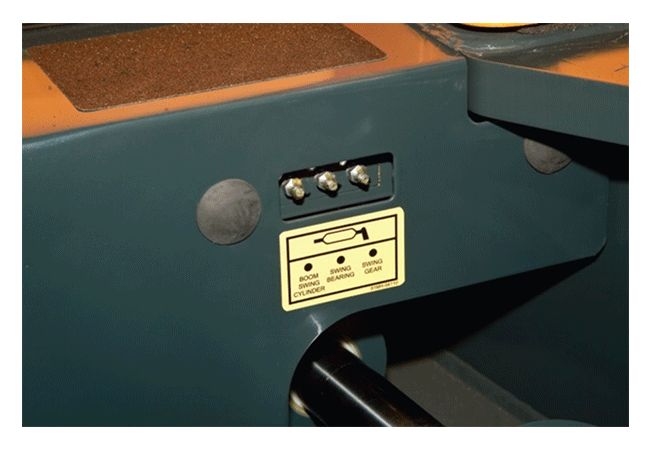

  • Centralized Lubrication

    A centralized lubrication bank is available for faster, easier service and maintenance.

    Powerful Engine

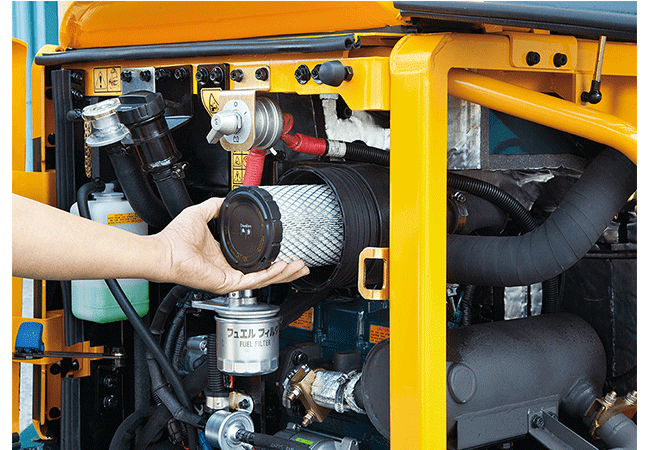

  • Long-life Components

    The 9AK Series Excavators feature long-life components, extended service intervals, and advanced systems that reduce maintenance costs and downtime while maximizing efficiency.

    Powerful Engine

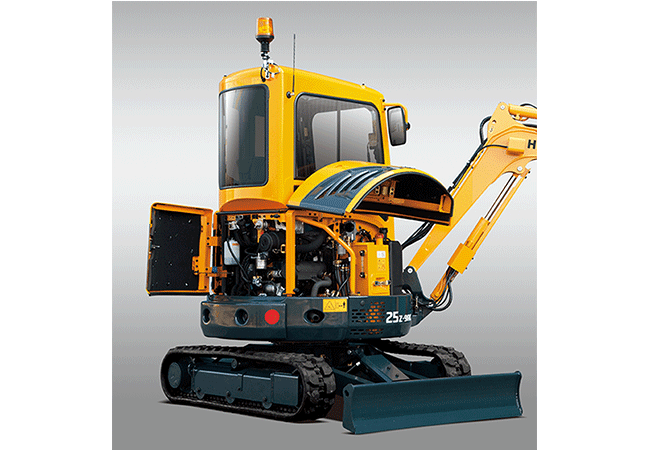

  • Easy Access

    The R30Z-9AK was built with accessibility in mind. All doors, covers and hoods were built for complete open access. Regular service and maintenance is easy and convenient with the R30Z-9AK.

    Powerful Engine

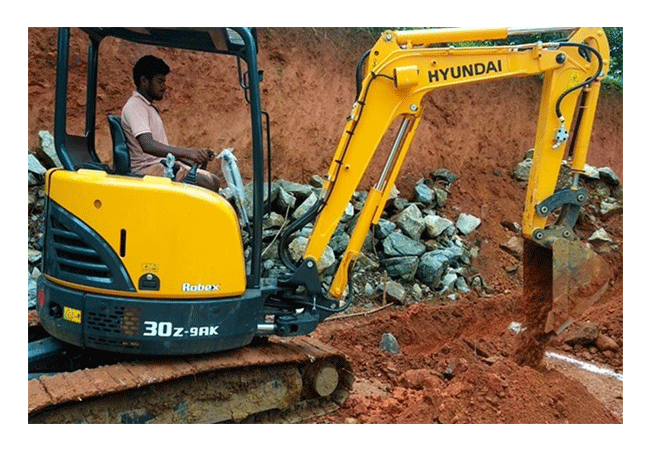

  • Strong Steel Cowl

    High Strength Steel Cowl provides enhanced strength, Easy Repair and Low Maintenance Cost.

    Powerful Engine

Safety:

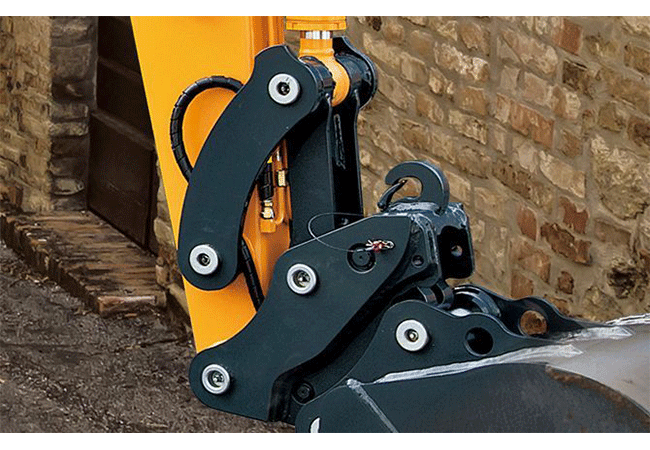

  • Dual-lock Coupler

    The R30Z-9AK comes equipped with dual locking quick coupler that complies with the latest safety standards and improves the safety when using a coupler with various attachments.

    Powerful Engine

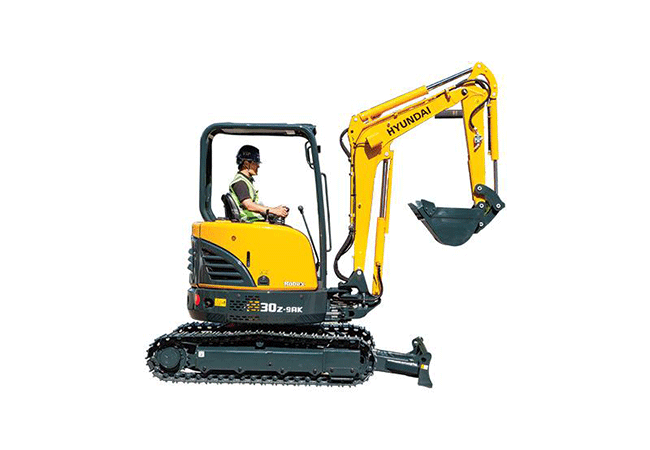

  • Reinforced Canopy

    The R30Z-9AK meets strict ISO standards, featuring a reinforced canopy with TOPS and FOG Level 1 protection for enhanced safety.

    Powerful Engine

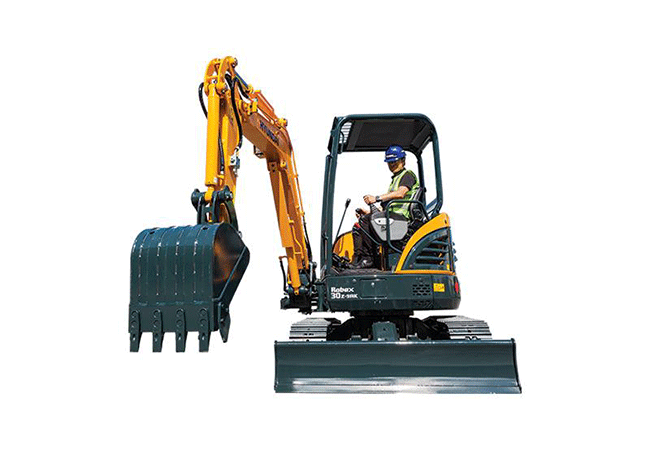

  • Zero Turning Radius

    The R30Z-9AK has a compact design and swings within the width of the tracks which allows for safe swing and maneuverability in tight spaces.

    Powerful Engine

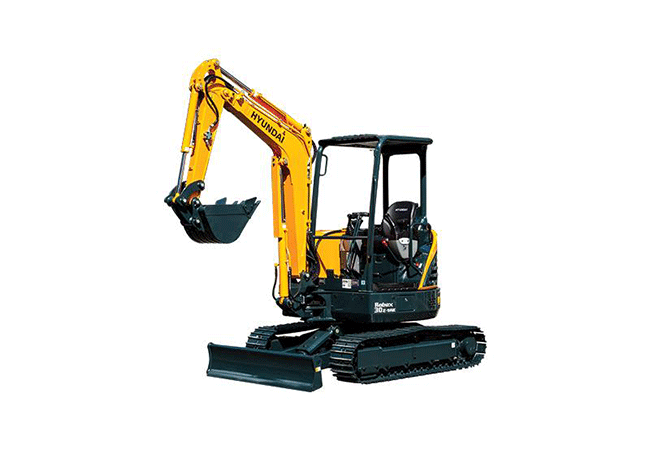

  • Excellent Visibility

    Hyundai engineers updated the cab designs to provide more space, a wider field of vision and more operator comfort.

    Powerful Engine
R30Z-9AK Brochures
Mini_Excavtor_R30 Download Brochure
Hyundai_R30Z-9AK Download Brochure
Engine Model Kubota D1305 Gross Power 24.9 HP @ 2350 rpm
Operating Weight 2985 Kg Bucket Range 0.08 m³ GP cu.m
Swing Speed 9.1 rpm Travel Speed (H/L) 4.4 / 2.4 km/hr
Max Digging Reach 4515 mm Tail Swing Radius 775 mm
Bucket Digging Force 2050 kgf Arm Crowd Force 1400 kgf
