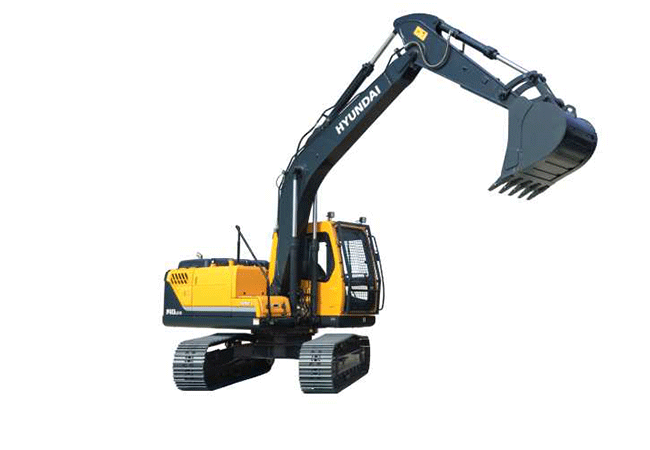

R140LC-9

Performance Efficiency Durability Safety

Engineered for Power and Precision

The R140LC-9 Hyundai excavator delivers high performance and easy operation, with 9-series hydraulics providing strong digging force and fast loading cycles.

Performance:

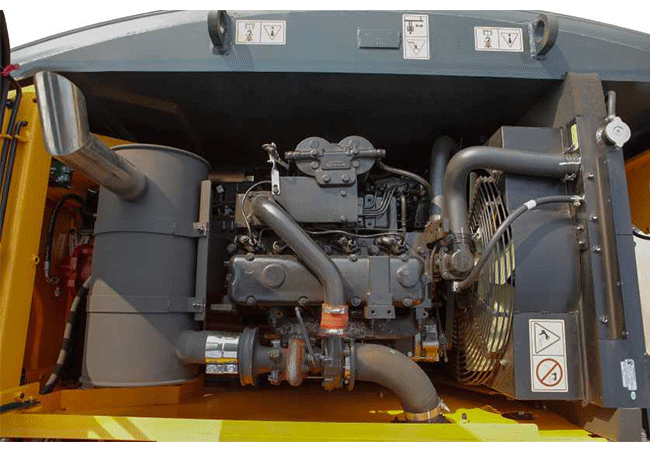

  • Powerful Engine

    The Kirloskar 4R1040T engine delivers 105 HP @ 2200 rpm with low fuel consumption, reduced operating costs, and extended 500-hour maintenance intervals.

    Powerful Engine

  • One-Touch Deceleration & Auto-Idle

    The one-touch deceleration and auto-idle functions optimize engine RPM, reducing fuel consumption and operating costs.

    Powerful Engine

  • Boom & Arm Flow Regeneration

    This feature recirculates hydraulic energy for smoother, faster arm operation while preventing cavitation and enhancing performance.

    Powerful Engine

  • Two Travel Speed Control System

    Two travel speed modes ensure easy maneuvering across varying terrains and gradients.

    Powerful Engine

Efficiency:

  • Power Boost Control System

    Automatically boosts digging force to handle peak load conditions efficiently.

    Powerful Engine

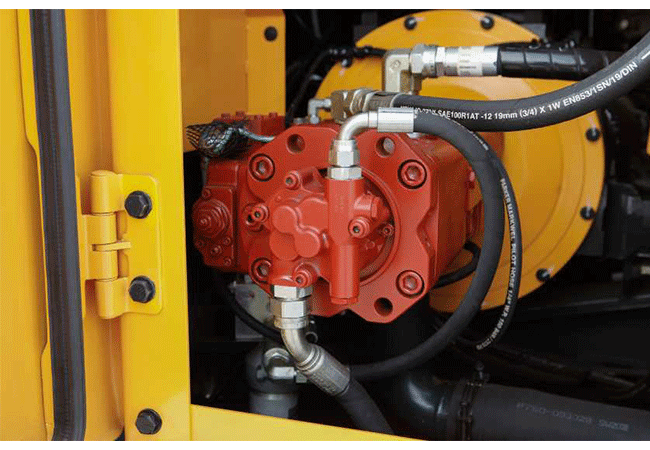

  • Electro Hydraulic Flow Control

    The variable displacement axial piston pump with electro-hydraulic control delivers optimal flow for any workload, while the open-center valve ensures fast, smooth, and efficient operations.

    Powerful Engine

  • Swing Priority

    Auto swing priority boosts hydraulic flow for faster cycles and higher productivity.

    Powerful Engine

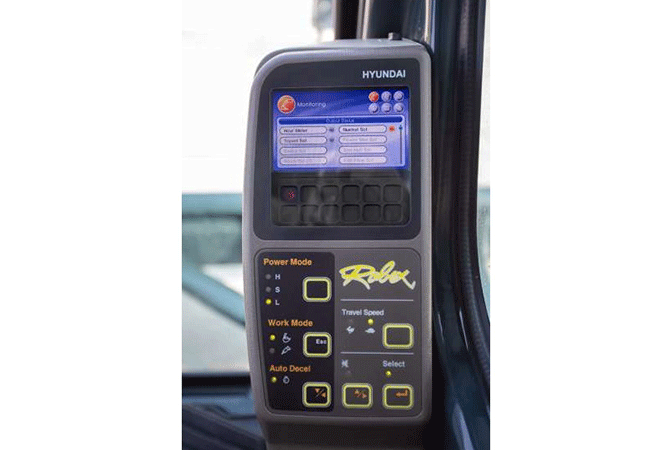

  • Advanced CAPO System

    The advanced CAPO system optimizes engine and pump power with multiple modes for high performance and fuel efficiency.

    Powerful Engine

Durability:

  • Strong Boom & Arm

    The boom and arm, built from high-tensile steel, are reinforced for maximum impact strength.

    Powerful Engine

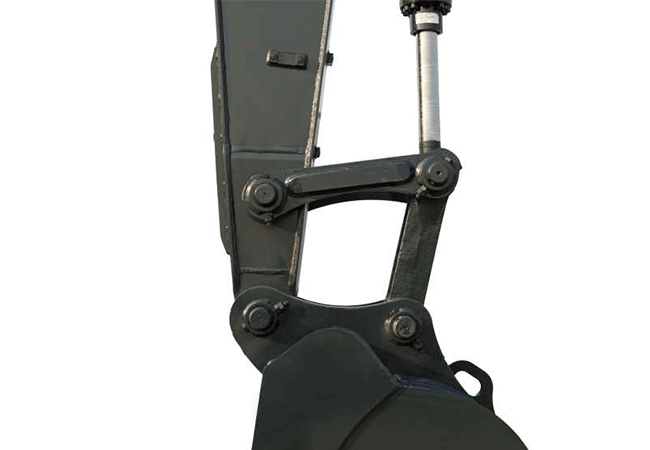

  • High-Strength Bucket Linkages

    The one-piece cast control link and reinforced bucket linkages ensure superior strength, durability, and high digging force.

    Powerful Engine

  • Heavy Duty Undercarriage

    Side member reinforcement safeguards the idler, while heavy-duty track shoes enhance stability and durability on rough terrains.

    Powerful Engine

  • Strong and stable Lower frame

    The reinforced box-section frame, made of high-strength steel, ensures maximum durability with its integrally welded X-leg design.

    Powerful Engine

Safety:

  • Automatic Engine Overheat Prevention

    The system monitors coolant temperature and automatically reduces engine speed to prevent overheating.

    Powerful Engine

  • Anti-Slip Pads & Handrail

    Anti-slip pads ensure firm footing, while handrails enhance operator safety during entry and exit.

    Powerful Engine

  • Anti-Restart System

    Prevents accidental engine restart, protecting against potential damage.

    Powerful Engine

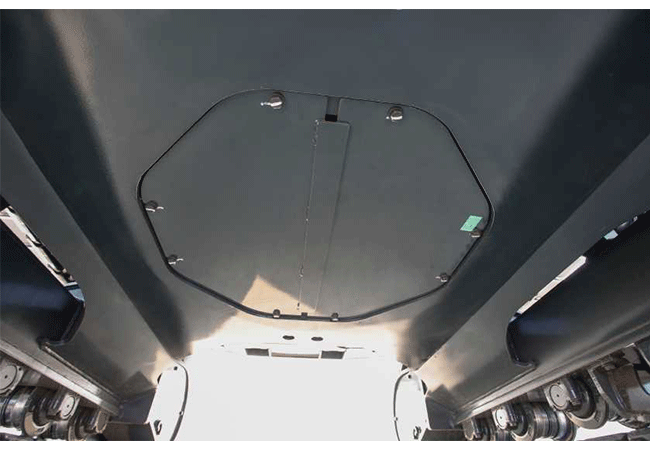

  • Added Tank Cover & Belly Guard

    The tank cover safeguards the fuel tank, while the belly guard protects the lower X-frame during travel.

    Powerful Engine
R140LC-9 Brochures
R140LC-_9v Download Brochure
Engine Model Kirloskar 4R1040T Gross Power (HP) 105 HP @ 2200 rpm
Operating Weight 13790 Kgs Bucket Range 0.65 – 0.72 cu.m
Swing Speed 12 rpm Travel Speed (High/Low) 5.5 / 3.2 km/hr
Max. Digging Reach on Ground 7780 mm Max. Digging Depth 5200 mm
Tail Swing Radius 2330 mm Bucket Digging Force 11290 kgf
Arm Crowd Force 8580 kgf
