210 SMART Plus

Performance Efficiency Durability Safety

Built for Profitability: The Hyundai 210 Smart Excavator

The 210 Smart Hyundai excavator is built for high profitability. Its high-tech features enables operators to do their job with great ease, its low fuel consumption and low maintenance adds to higher returns.

Performance:

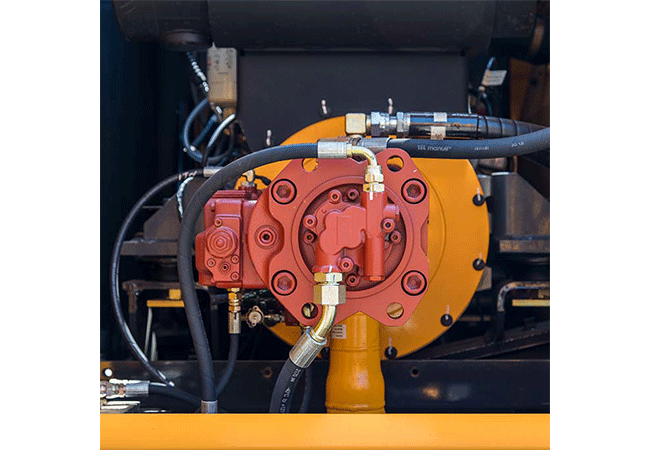

  • Electro Hydraulic Flow Control

    The variable displacement axial piston pump with electro-hydraulic control delivers optimal flow for any workload, ensuring faster, smoother operations.

    Powerful Engine

  • Arm Regeneration

    Arm regeneration recirculates hydraulic energy for faster, smoother operation and improved performance.

    Powerful Engine

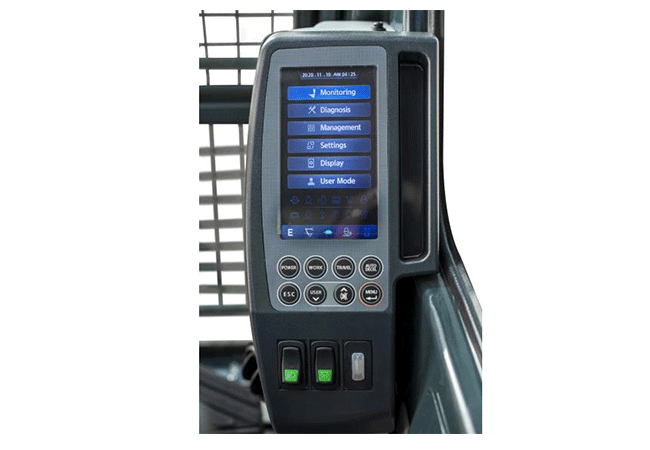

  • Digital Cluster with Color Display and Work Mode Selection

    The digital cluster displays vital machine data, enabling optimized performance through selectable power, work, and user modes.

    Powerful Engine

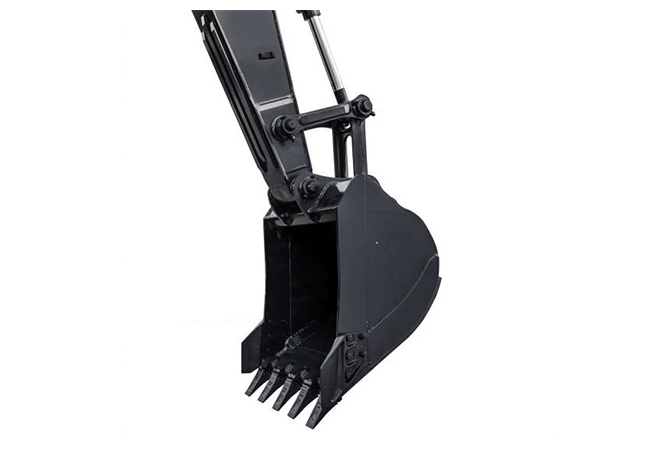

  • High Bucket Digging Forces

    The Hydraulics and attachments are designed to offer high digging forces.

    Powerful Engine

Efficiency:

  • One-Touch Deceleration & Auto-Idle

    The one-touch deceleration and auto idle functions optimize engine RPM, reducing fuel consumption and operating costs.

    Powerful Engine

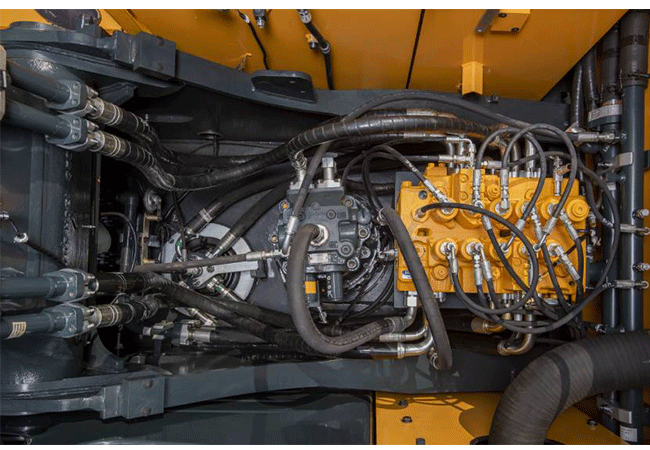

  • Swing Priority

    The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.

    Powerful Engine

  • Fuel Saving Kit

    Sensors detect excess load and optimize control to enhance fuel efficiency.

    Powerful Engine

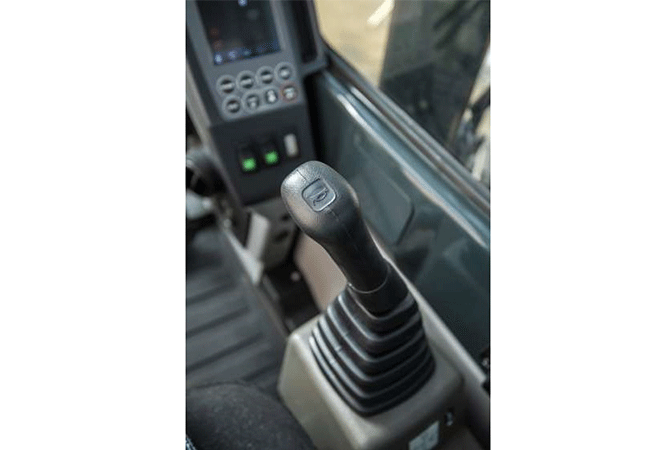

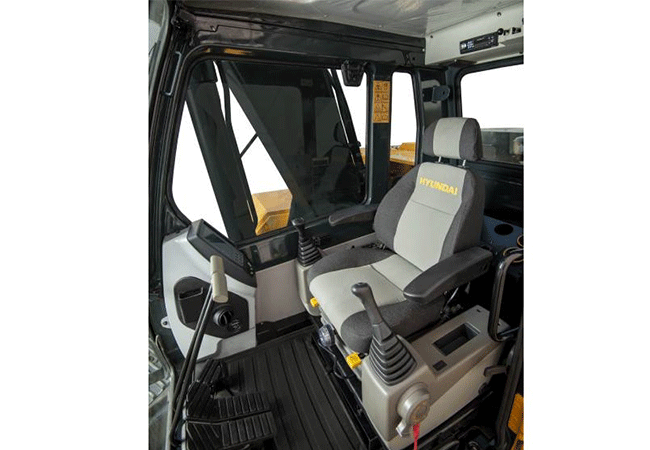

  • Comfort

    The spacious air-conditioned cabin with a 7-way adjustable seat and soft joystick controls ensures superior comfort and productivity.

    Powerful Engine

Durability:

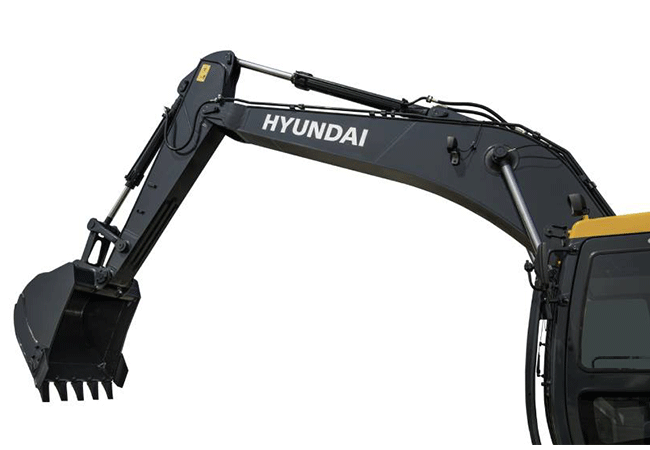

  • Strong Boom & Arm

    The boom and arm, built with high-tensile steel and reinforced baffle plates, ensure maximum impact strength.

    Powerful Engine

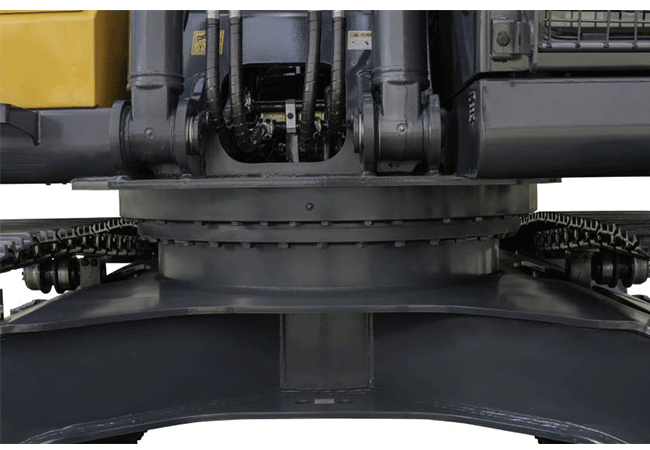

  • Forged Ring Body

    The one-piece cast control link and reinforced bucket linkages provide superior strength, durability, and high digging force for heavy loads.

    Powerful Engine

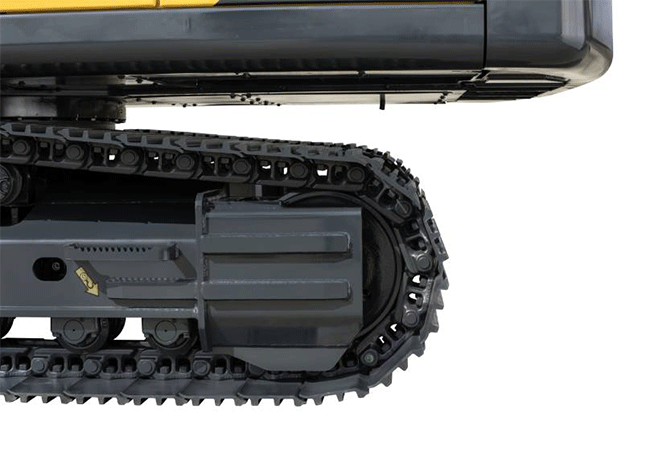

  • Heavy Duty Undercarriage

    Side member reinforcement protects the idler, while the heavy-duty track shoe enhances stability and durability on rough terrains.

    Powerful Engine

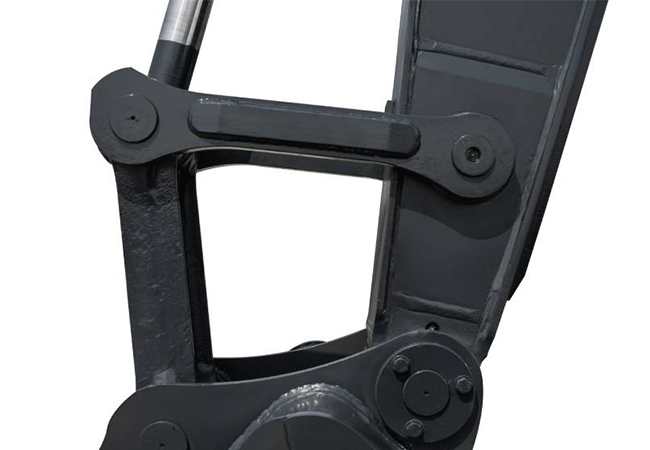

  • Reinforced Bucket Linkage

    Control link is casted in one-piece design. The bucket linkages are reinforced to ensure high durability and high digging forces.

    Powerful Engine

Safety:

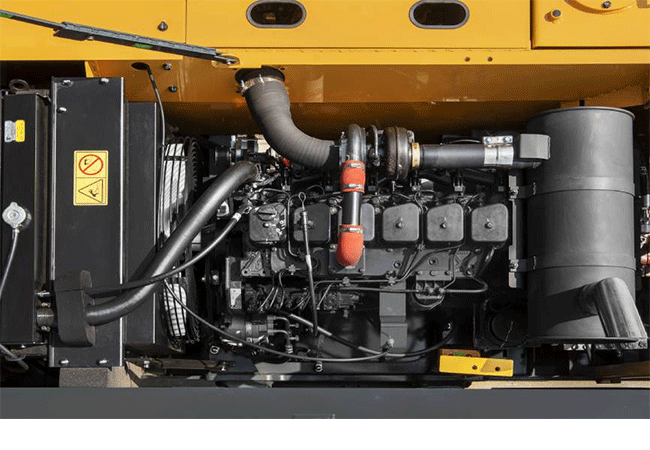

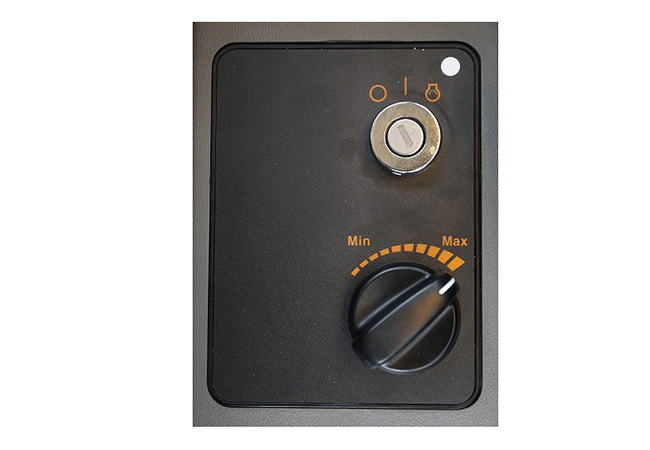

  • Anti-Restart System

    This feature prevents accidental engine restarts, protecting the engine from damage.

    Powerful Engine

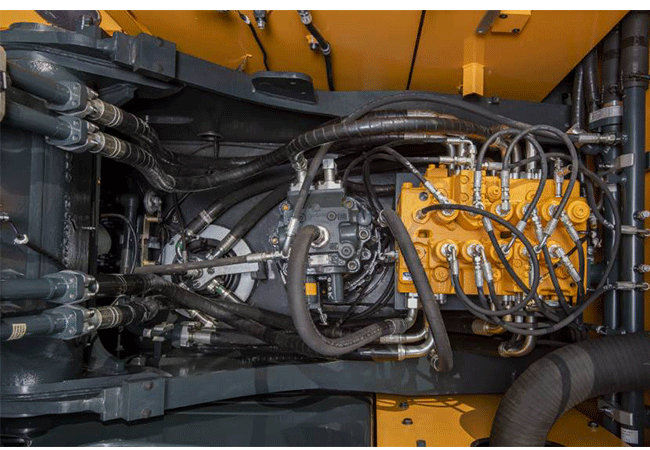

  • Counterbalance & Holding Valve

    The counterbalance valve ensures stability on slopes, while the holding valve prevents attachment drift during overhangs.

    Powerful Engine

  • Anti-Restart System

    This feature prevents accidental engine restart, protecting the starter from damage.

    Powerful Engine

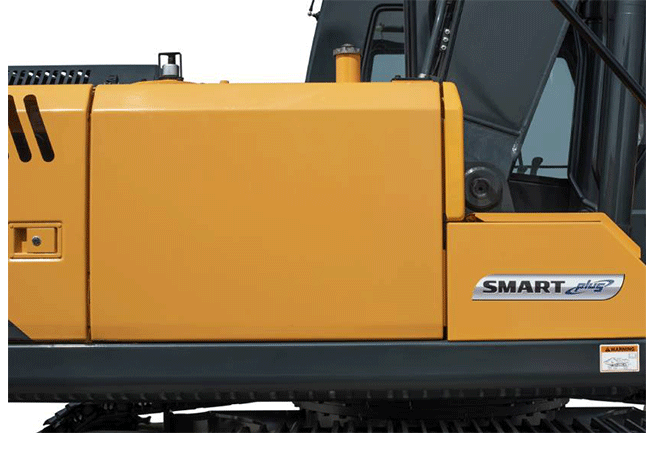

  • Added Tank Cowl

    The tank cover protects the fuel tank from external impacts during excavation.

    Powerful Engine
210 SMART Plus Brochures
Hyundai_cons_210_SMART_Plus Download Brochure
Engine Model Cummins 6BT5.9C Gross Power (HP) 140 HP @ 2000 rpm
Operating Weight 21200 Kgs Bucket Range 0.87 – 0.92 cu.m
Swing Speed 11 rpm Travel Speed (High/Low) 5.3 / 3.4 km/hr
Max. Digging Reach on Ground 9500 mm Max. Digging Depth 6220 mm
Tail Swing Radius 2830 mm Bucket Digging Force 15500 kgf
Arm Crowd Force 12000 kgf
