The R480 LC-9S Hyundai excavator is specifically made for extremely heavy duty mining and quarrying operations. And that’s why, it comes with top-of-the-line features that promise fast performance, high stability, extended machine & component life, and high operator convenience, comfort and safety.

Performance

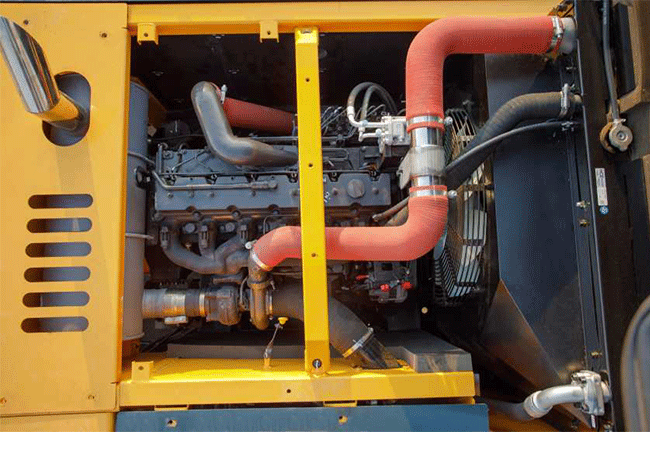

Powerful Engine

The water-cooled, 4-cycle diesel, 6-cylinder in line, direct injection turbocharged, charge air cooled engine is built for power, reliability, efficiency and reduced emission. The engine is manufactured to perform in wide range of heat, humidity and dust conditions without compromising productivity.

ac-15d-detail

Auto Power Boost System

It helps to meet extreme power requirement when working with peak loads. If high digging pressure is observed for more than 1 second, the controller automatically boosts digging forces to meet job condition.

ac-15d-detail

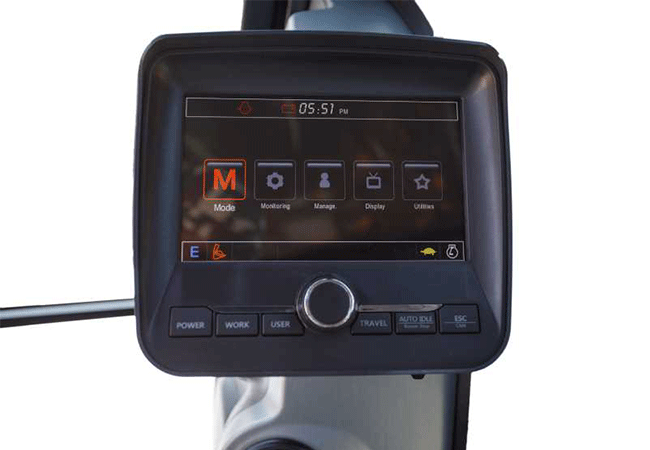

7” Wide LCD Touch Screen

It helps to maintain machine in optimum health by displaying key machine information like oil temperature, coolant temperature, maintenance checklists, and other such vital statistics. It also lets the operator choose between 3 power modes and 2 work mode.

ac-15d-detail

Hi-MATE

With Hyundai's proprietary remote management service, users can check important machine information anytime, anywhere! They can track machine’s exact location, set work boundaries and check vital diagnostic information. It helps to save time by reducing the need for multiple service calls. And also saves money by enabling preventive maintenance and reducing machine downtime.

ac-15d-detail

Efficiency

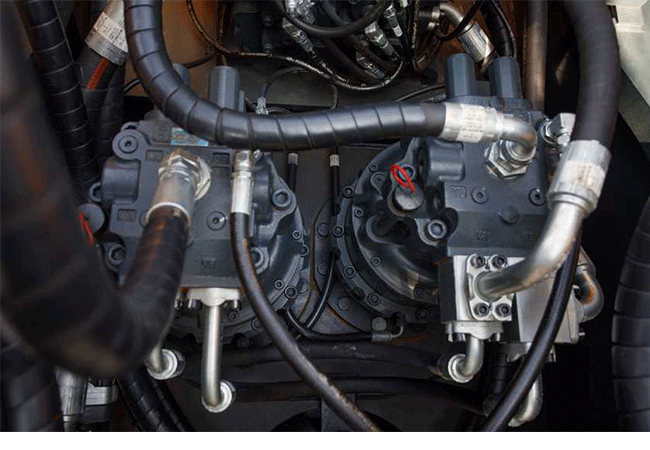

Auto Boom & Swing Priority

The auto-piloted swing priority increases hydraulic oil flow to swing circuit in combined operation, which leads to faster swing cycle for more productivity & profitability.

ac-15d-detail

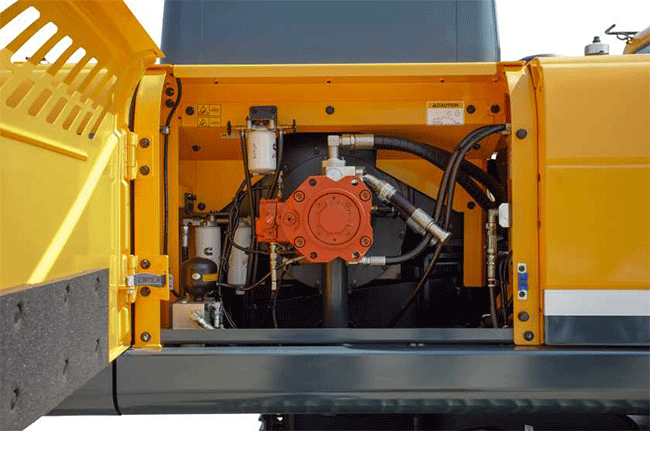

CAPO System

The advanced CAPO (Computer Aided Power Optimization) system tunes engine and pump power to optimum level. Multiple modes selections are available for various workloads, maintaining high performance while reducing the fuel consumption.

ac-15d-detail

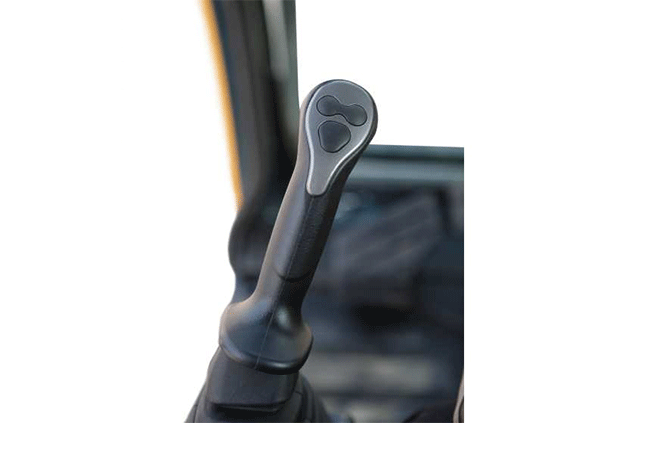

One-Touch & Auto-Idle

One touch deceleration switch on top of LH joystick lowers the engine RPM when selected. This saves fuel by regulating pump and engine.Auto Idle function moderates engine RPM to idle state when machine remains idle for 4 sec by enabling MCU to send a signal to engine. This in turn reduces fuel consumption and operation cost.

ac-15d-detail

Maintenance Management

This smart feature keeps a record of scheduled time interval for each maintenance area. This feature ensures maintenance of the machine by keeping the operator updated at all the times.

ac-15d-detail

Durability

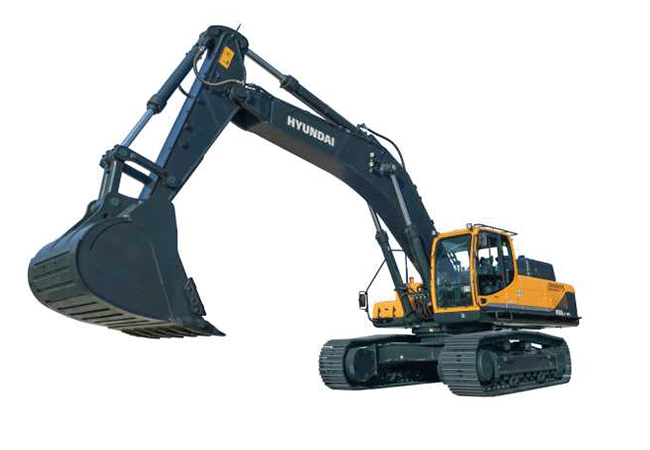

Heavy Duty Boom & Arm

Made with high tensile strength steel, the boom & arm are reinforced with steel bearings and internal baffle plates to withstand wear and tear, thus extending component life. Additionally the reinforced ribs are provided to prevent damage from lifted boulders.

ac-15d-detail

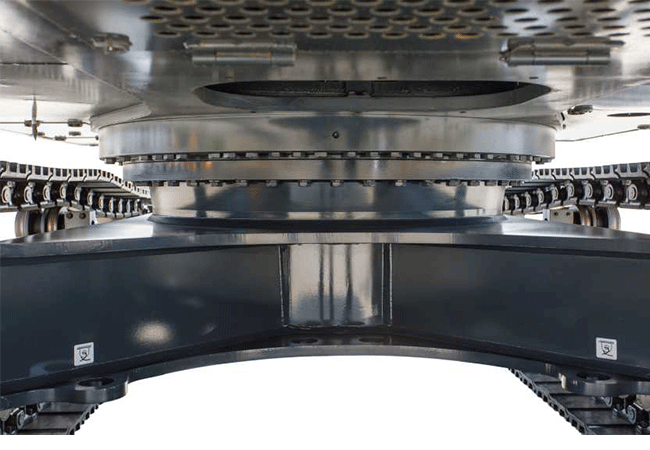

Reinforced Frames

The frames are built to withstand tougher conditions by enduring external shocks and heavy workloads, thus extending machine life.

ac-15d-detail

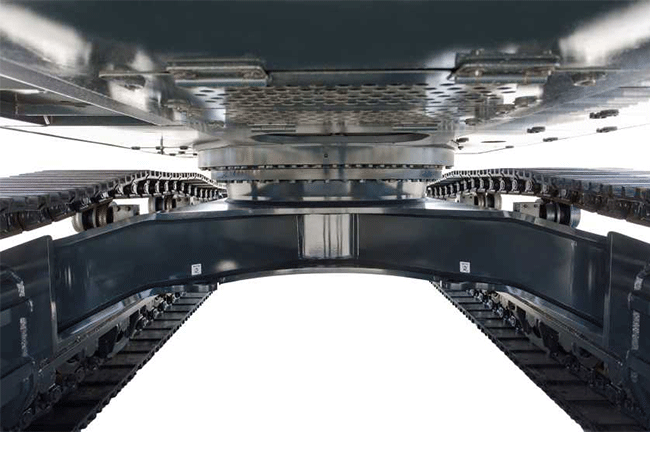

Heavy Duty Undercarriage

Side Member reinforcement protects the idler from any damage in tough terrains. A heavy-duty track shoe provides better stability and durability on harsh terrains.

ac-15d-detail

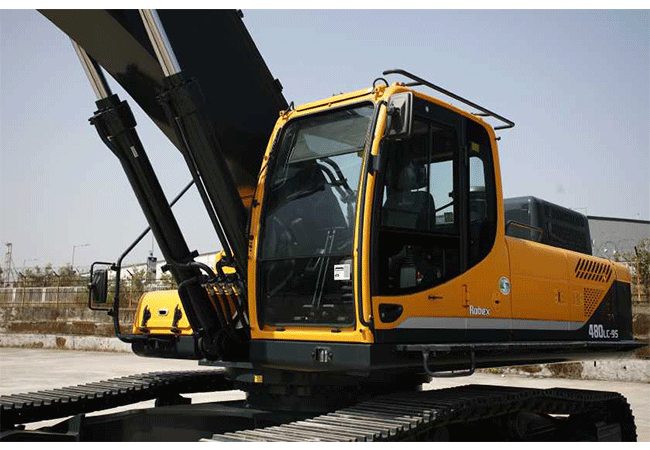

Cabin Structure

The 9S series cabin structure has been fitted with stronger but slimmer tubing for more safety and improved visibility. Structural Integrity was tested by way of FEM (Finite Element Method) analysis and long-term durability test.

ac-15d-detail

Safety

Engine Overheat Prevention

This feature monitors coolant temperature and automatically lowers engine speed if it overheats, preventing premature failure of the machine.

ac-15d-detail

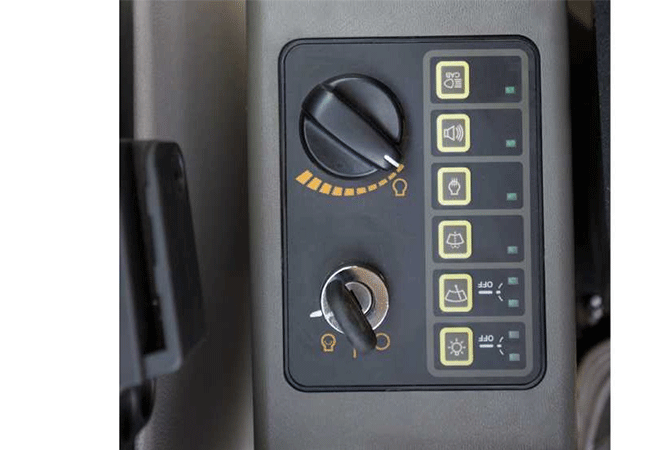

Anti-Restart System

This feature prevents the starter from restarting during engine operation if the operator accidently turns on the start key. Thus preventing accidental damage to the engine.

ac-15d-detail

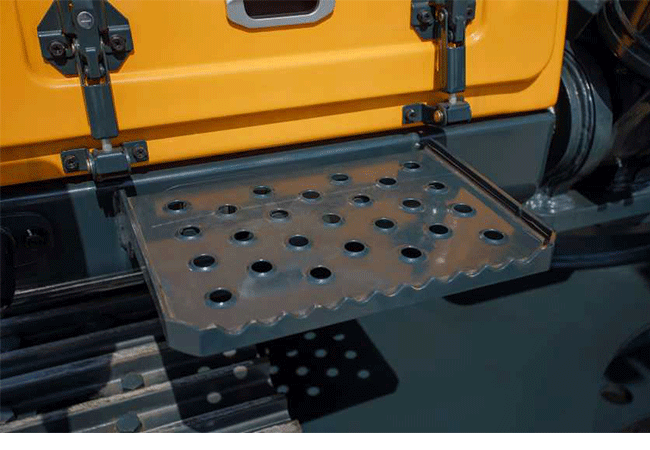

Anti-Slip Pads

Anti-slip pads provides a great floor grip to the operator and prevent skidding while working on the machine. Handrails provide additional support and safety to the operator while entering or exiting the cabin.

ac-15d-detail

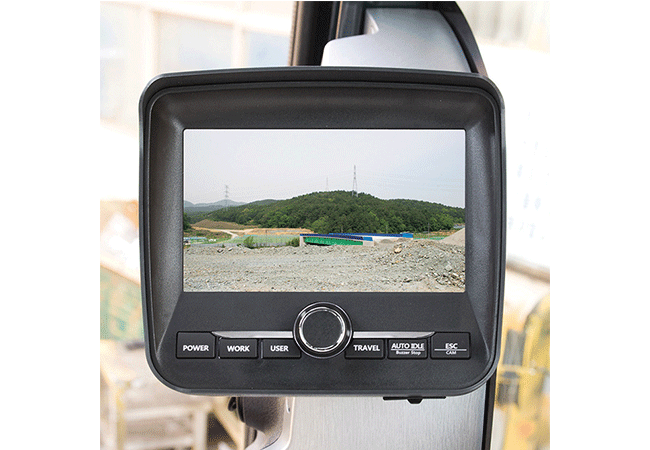

Rear-view Camera

A rear-view camera is integrated into the monitor, which allows for safer and easier operation while driving in reverse.

ac-15d-detail

Comfort

Air Conditioned Cabin

The spacious Air Conditioned cabin creates a very comfortable working environment for the operator.

ac-15d-detail

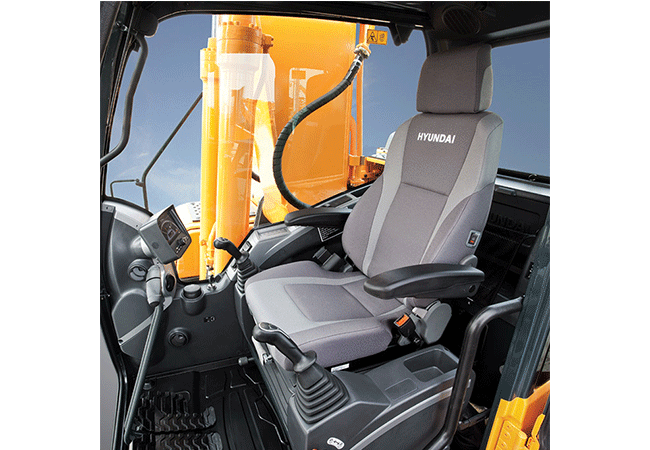

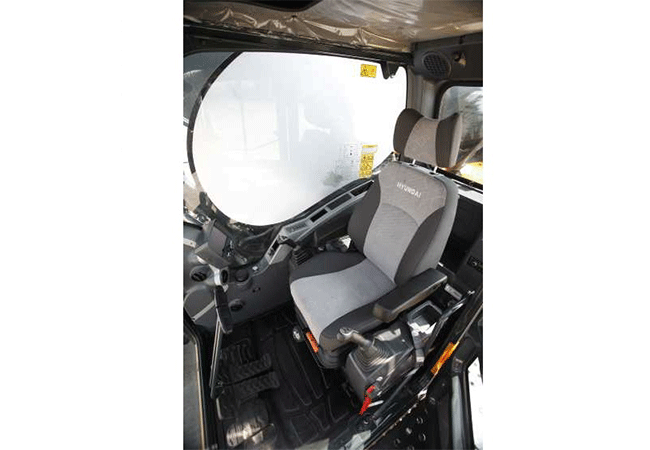

Premium Seat

Hyundai excavators feature deluxe operator's seats with mechanical suspension, selectable heat and adjustable arm rests and control consoles. Seats are fully adjustable for maximum operator comfort.

ac-15d-detail

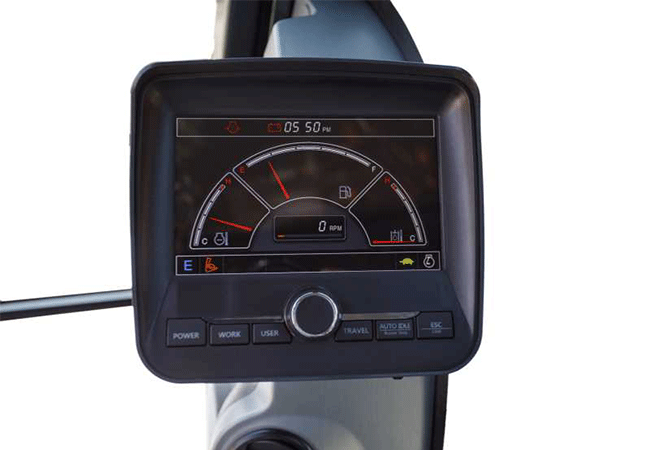

Digital Cluster

The digital cluster displays key machine information like oil temperature, coolant temperature, and other vital statistics. Optimized performance is achieved by letting operator to choose between two power modes, three work modes and two User Modes.

ac-15d-detail

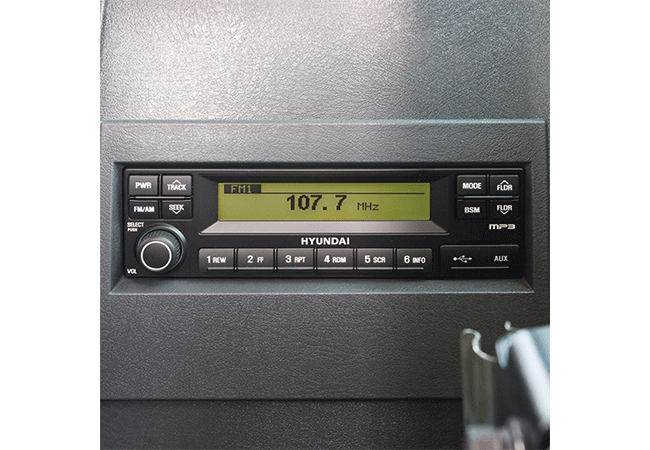

Advanced Audio System

The audio system includes an AM/FM radio, a USB-based MP3 player, an integrated Bluetooth hands-free feature and a built-in microphone to allow for phone calls while at work and in transit. The audio system controls are located on the right side of the operator for convenient access.

ac-15d-detail
  • Engine model Cummins QSM11-C
  • Gross power (HP) 353 HP @ 1900 rpm
  • Operating weight 49500 Kgs
  • Bucket range 2.43 - 3.0 cu.m
  • Swing speed 9 rpm
  • Travel speed, high/ low 5.0/ 3.2 km/hr
  • Max. digging reach on ground 11900 mm
  • Max. digging depth 7810 mm
  • Tail swing radius 3780 mm
  • Bucket digging force 28360 kgf.
  • Arm crowd force 22150 kgf.
